IEC 62368-1 Clause V.1.6 Figure V.5 Terminal Probe 20mm±0.2 mm

IEC 62368-1 Clause V.1.6 Figure V.5 Terminal Probe 20mm±0.2 mm

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Boxed
Delivery Period: 10 Days
Payment Method: L/C, T/T
Supply Capacity: 100 PCS Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-4S
Applied Standard:
IEC 62368-1
Applied Clause:
V.1.6 Figure V.5
Diameter Of The Metal Wire:
Ф1+0.05 0mm
Sphere Diameter:
SФ35±0.2 Mm
Probe Length:
20±0.2 Mm
Handle Length:
100 Mm
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Boxed
Delivery Time:
10 Days
Payment Terms:
L/C, T/T
Supply Ability:
100 PCS Per Month
High Light:

Figure V.5 Terminal Probe

,

IEC 62368-1 Terminal Probe

,

Clause V.1.6 Terminal Probe

Product Description

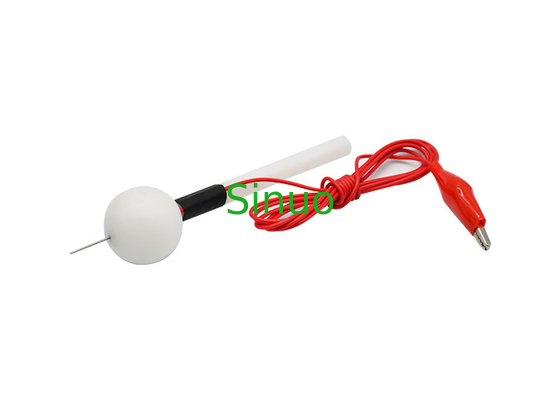

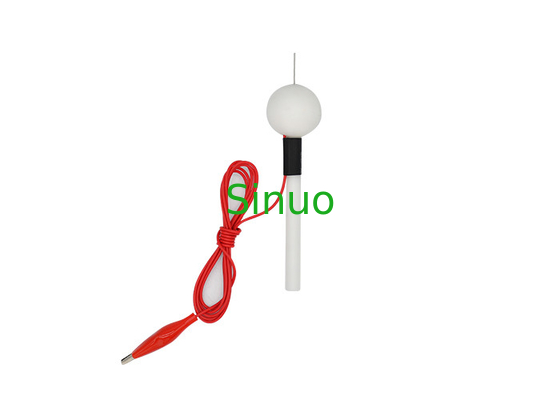

IEC 62368-1 Clause V.1.6 Figure V.5 Terminal Probe 20mm±0.2 mm



Product information:

Standard:IEC 62368-1:2018 clause V.1.6 and figure V.5 (but with probe length 20mm±0.2 mm), etc.

Application:This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with a force gauge).



Standard figure (but with 20mm±0.2mm instead of 100mm±0.2mm):

IEC 62368-1 Clause V.1.6 Figure V.5 Terminal Probe 20mm±0.2 mm 0



Technical Parameters:

Applied standard IEC 62368-1
Applied clause V.1.6 Figure V.5
Diameter of the metal wire Ф1+0.05 0mm
Sphere diameter SФ35±0.2 mm
Handle diameter Ф10 mm
Probe length 20±0.2 mm
Handle length 100 mm





IEC 62368-1 Clause V.1.6 Figure V.5 Terminal Probe 20mm±0.2 mm 1IEC 62368-1 Clause V.1.6 Figure V.5 Terminal Probe 20mm±0.2 mm 2
