IEC60335-2-15 Clause 19.101 Cordless Kettle Comprehensive Life Test Equipment

IEC60335-2-15 Clause 19.101 Cordless Kettle Comprehensive Life Test Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 Days
Payment Method: L/C, T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1119B
Applied Standard:
IEC60335-2-15
Applied Clause:
19.101
Test Station:
Single Station
Drive Method:
Cylinder Drive
Control Mode:
PLC Intelligent Integrated Control
Display Mode:
7" Touch Screen
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T
Supply Ability:
20 Sets Per Month
High Light:

Cordless Kettle Comprehensive Life Test Equipment

,

IEC 60335-2-15 Comprehensive Life Test Equipment

,

Single Station Comprehensive Life Test Equipment

Product Description



IEC60335-2-15 Clause 19.101 Cordless Kettle Comprehensive Life Test Equipment



Product Information:

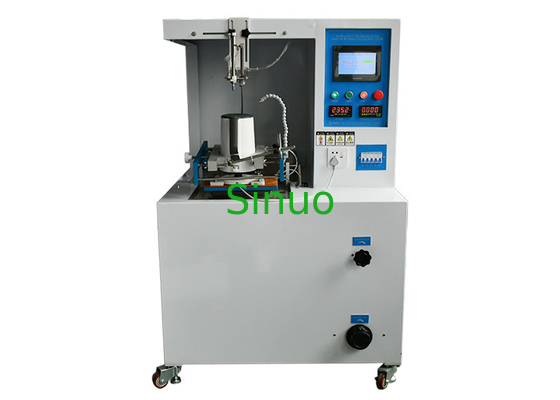

This Automatic Cordless Kettle Comprehensive Life Test Equipment is designed and manufactured according to the standard requirement of IEC60335-2-15 clause 19.101, 19.102 and 22.103, and etc.

It is used to test the comprehensive life test, verification and reliability and durability of the whole machine of the cordless kettle for household and similar purposes

The equipment is controlled by Mitsubishi PLC and operated by a 7-inch color touch screen. Built-in adjustable load, adjustable current and voltage, can guarantee input 0.85 times or 1.15 times power; the equipment can automatically add water, match boiling water test and dry boiling water cooling test; the equipment can realize automatic power on and dry boiling, automatic water injection, automatic water pouring function to realize 100 times of fully automatic water boiling operation, and automatically stop when the number of times is reached.



Technical Parameters:

Applied standard IEC60335-2-15
Applied clause 19.101
Test station Single station
Electric control method PLC intelligent integrated control, 7-inch man-machine touch interface operation
Drive method Cylinder drive
Sample clamping method Mechanical clamping with centripetal centering fixture
Basis functions

Including dry boiling (self-cooling), dry boiling (water-cooled), plug (with electricity), plug (without electricity), and circulating boiling water:

1. Dry boiling (self-cooling):start→pour water→reset→start dry boiling→dry boiling end (thermostat jumps off)→natural cooling until the temperature controller reset→cycle dry boiling;

2. Dry boiling (water-cooled): start→pour water→start dry boiling→dry boiling ends (thermostat jumps off) →add water to cool until the thermostat reset (water volume adjustable) →pour water→circular dry burning;

3. Plug (without power): start→start plug (cycle work)

4. Plug (powered): start→add water to the kettle (adjustable water volume) →start plugging with electricity→cycle work→change the water at a fixed number of times→cycle in this way

5. Circulating boiling water: start→pouring→reset→add water (water volume can be set) →heating and boiling water→after the water is boiled (the thermostat jumps on) →automatic pouring→reset→cycle work

Load Each station can display the voltage and current of sample
Conduction count Fault alarm and shutdown when non-conduction
Test times 0-999999, when the set number of times is reached, the alarm will prompt and stop
Main configuration The frame is made of aluminum alloy square tube; the door panel and the box are painted; the main water contact parts are made of 304 stainless steel or aluminum alloy
Air source This machine needs to use compressed air, the air pressure is 0.5MPa -0.7MPa
Test mode 1. Boiling mode
2. Plug mode (with electricity)
3. Plug mode (without electricity)
4. Hot and cold dry burning mode (water cooling)
5. Hot and cold dry mode (self-cooling)
The main parameters of control A: Water pouring time: 1~9999(s),adjustable; Pouring reset: 1~9999(s), adjustable
B: Adding water time: 1~9999(s), adjustable; Cooling time: 1~9999(s), adjustable
C: Plug with electricity: 1~9999 (s) adjustable; Plug without electricity: 1~9999 (s) adjustable
D: Rest setting: 1~9999 (times),adjustable; Rest time: 1~9999 (s), adjustable
E:Times setting: 1~9999 (times), adjustable; Actual count: 1~9999 (times), adjustable
Alarm A: Count to alarm
B: No power alarm (Boil water, dry boil, plug with electricity)
C: When the equipment fails, manual operation can be adopted, and the independent operation of each station does not affect each other.


IEC60335-2-15 Clause 19.101 Cordless Kettle Comprehensive Life Test Equipment 0
