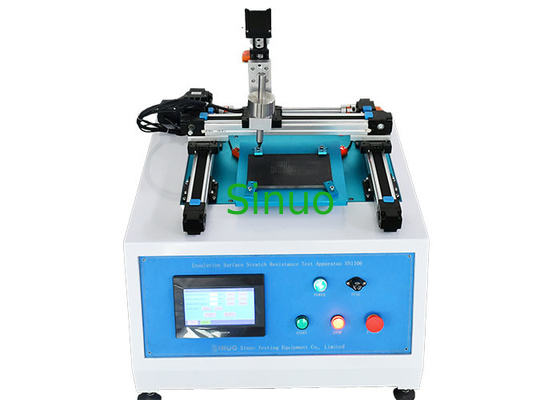

IEC 62368-1 Clause 5.4.1.5.3 Insulation Surface Scratch Resistance Test Apparatus

IEC 62368-1 Clause 5.4.1.5.3 Insulation Surface Scratch Resistance Test Apparatus

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 Days
Payment Method: L/C, T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1106
Applied Standard:
IEC 62368-1
Applied Clause:
5.4.1.5.3
Test Station:
1 Station
Control Method:
PLC + Touch Screen
Drive Mode:
Stepper Motor Drive
Test Bench:
Can Be 90o Rotated
Scratching Pressure:
10N±0.5N
Scratching Angle:
80o To 85o To The Horizontal
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T
Supply Ability:
20 Sets Per Month
High Light:

Insulation Surface Scratch Resistance Test Apparatus

,

IEC 62368-1 Scratch Resistance Test Apparatus

,

Clause 5.4.1.5.3 Scratch Resistance Test Apparatus

Product Description



IEC 62368-1 Clause 5.4.1.5.3 Insulation Surface Scratch Resistance Test Apparatus



Production Information:

This Insulation Surface Scratch Resistance Test Apparatus meets the requirements of IEC 62368-1 clause 5.4.1.5.3, IEC 60335-2-78:31; IEC 60335-2-95:31; IEC 60335-2-97:31; IEC 60335-2-103:31; IEC 60335-1:21.2; IEC 60335-2-40:31, etc.

It is used to test the solid insulated parts that have been touched, coated with printed boards or coated component of household and similar appliances



Working Principle:

The surface of the insulation is then scratched by means of a hardened steel pin, the end of which has the form of a cone with an angle of 40o. Its tip is rounded with a radius of 0,25 mm ± 0,02 mm. The pin is held at an angle of 80o to 85o to the horizontal and loaded so that the force exerted along its axis is 10 N ± 0,5 N. The scratches are made by drawing the pin along the surface of the insulation at a speed of approximately 20 mm/s. Two parallel scratches are made. They are spaced sufficiently apart so that they are not affected by each other, their length covering approximately 25 % of the length of the insulation. Two similar scratches are made at 90o to the first pair without crossing them.



Technical Parameters:

Applied standard IEC 62368-1
Applied clause 5.4.1.5.3
Input power supply AC 220V/50Hz
Test station 1 station
Control method PLC + touch screen
Drive mode Stepper motor drive
Scratching speed 0-25mm/s adjustable, can be preset
Scratching times 0-9999 times, it can be preset
Scratching distance Approximately 25 % of the length of the insulation, can be preset
Test bench Can be 90o rotated
Scratching pressure 10N±0.5N
Scratching pin hardened steel pin, the end of which has the form of a cone with an angle of 40o. Its tip is rounded with a radius of 0,25 mm ± 0,02 mm
Scratching angle 80o to 85o to the horizontal
