IEC 62368-1 Clause Y.5 IPX3 to IPX6 Water Spray Test Apparatus





Product information:

The testing system is required by IEC 62368-1:2018 clause Y.5, etc. It is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX3, IPX4, IPX5 and IPX6.

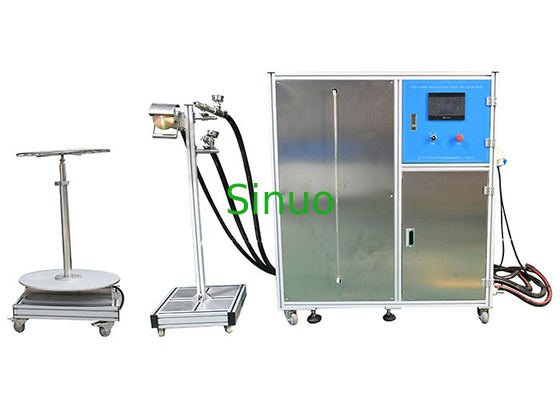

The whole test equipment consists of one set of IPX3, IPX4 spray nozzle, one set of water jet nozzles, an electrical control cabinet integrated with the water storage tank, a support for nozzles, and a turntable. The sample is placed on the turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzle. The electrical control part and water storage tank are integrated. This whole system adopts open structure.



Technical parameters:



Applied standard IEC 62368-1
Applied clause Y.5
Power supply for this equipment Three phase AC 380V, 50Hz, 4KW
Power supply for sample AC220V, 16A
LWGYD-4 flow rate Sensors Flow range: 0.667-4.167 L/min, pulse output
Large water pump

Brand: South, model no.: CHL8-50, 380VAC, 50Hz, 2.2kw

Protection class: IP55 Insulation class: F

IP code test range IPX5 hose nozzle test, IPX6 hose nozzle test, IPX3/4 spray nozzle test

IPX3/4 spray nozzle



Number of spray holes 121 pieces, hole diameter: φ0.5mm
Test flow 10±0.5 L/min
Test time Set according to the test standard (range 1-9999 seconds), the unit is: second
Test pressure 50-150kPa
IPX5 Nozzle opening diameter 6.3mm
Test flow 12.5±0.625L/min
Test time Set according to the test standard (range 1-9999 seconds), the unit is: second
Test pressure Adjust IPX5 about 30kpa according to the specified water flow
Test distance The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m
IPX6 Nozzle opening diameter 12.5mm
Test flow 100±5L/min
Test time Set according to the test standard (range 1-9999 seconds), the unit is: second
Test pressure Adjust IPX6 about 100kpa according to the specified water flow
Test distance The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m
Turntable 1-5r/ min, can be set
Control PLC & 7” touch screen
