IEC 62368-1 Clause 5.4.2 Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs

IEC 62368-1 Clause 5.4.2 Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Boxed
Delivery Period: 20 Days
Payment Method: L/C, T/T
Supply Capacity: 50 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1104-2
Applied Standard:
IEC 62368-1
Clause:
5.4.2
DC High Voltage:
Max. 6kV
Instrument Internal Resistance:
40Ω ± 10%
Internal Resistance Converter Box:
500Ω - 10% Optional
Impact Interval Time:
30~999s
Impact Cycles:
1 ~ 9999
Polarity:
Positive And Negative
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Boxed
Delivery Time:
20 Days
Payment Terms:
L/C, T/T
Supply Ability:
50 Sets Per Month
High Light:

Integrated Impulse Voltage Test Apparatus

,

Clause 5.4.2 Voltage Test Apparatus

,

IEC 62368-1 Voltage Test Apparatus

Product Description



IEC 62368-1 Clause 5.4.2 Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs





Product information:

The Integrated Impulse Voltage Test Apparatus conforms to the standards of IEC 62368-1:2018 clause 5.4.2,5.5.8 and Annex D, circuit 1 and circuit 2 of Table D.1, Annex G.10, etc., IEC 60950-1:2013 clause 2.10.3.9, 5.2, reference 2 of table N.1, IEC 60950-1:2013 clause 6.2.2.1 and 7.4.3 reference 1 of table N.1, IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60335-1 clause 14, and etc.

It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance of household appliance, audio, video and similar electronic apparatus.

The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.



Technical parameters:

Applied Standard IEC 62368-1
Clause 5.4.2,5.5.8
DC high voltage Max. 6kV
Impulse voltage wave

Impulse wavefront time: 10 µs ± 30 %;

Half value of after wave time: 700 µs ± 20 %

Instrument internal resistance 40Ω ± 10%
Internal resistance converter box 500Ω - 10% optional
Peak voltage: 300 V~ 12,500V 0~6kv, ± 5%
Impact interval time 30~999s
Impact cycles 1 ~ 9999
Polarity Positive and negative
Working power source Power consumption: 50 VA
Dimension 430mm×180mm×480mm
Weight 20 KG

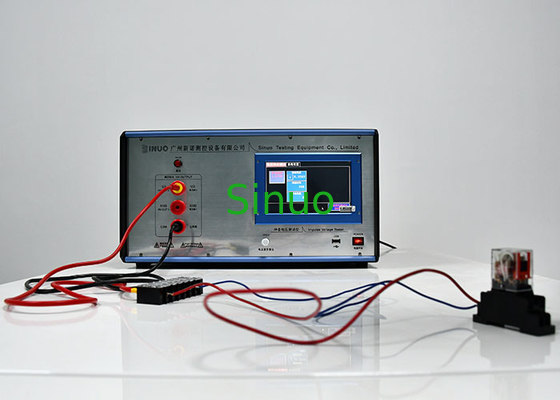

IEC 62368-1 Clause 5.4.2 Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs 0



IEC 62368-1 Clause 5.4.2 Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs 1IEC 62368-1 Clause 5.4.2 Integrated Impulse Voltage Test Apparatus 1.2 /50 µs 10/700 µs 2
