IEC 60065 Clause 12.1.1 Drop Testing Equipment For Audio Video Products

IEC 60065 Clause 12.1.1 Drop Testing Equipment For Audio Video Products

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 Days
Payment Method: L/C, T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2211
Standard:
IEC 60065
Clause:
12.1.1
Bearing Weight:
100KG
Drop Height:
5cm
Test Times:
1~99999, Can Be Preset
Wooden Platform:
30 Mm Mock Floor
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T
Supply Ability:
20 Sets Per Month
High Light:

Clause 12.1.1 Drop Testing Equipment

,

IEC 60065 Drop Testing Equipment

Product Description



IEC 60065 Clause 12.1.1 Drop Testing Equipment for Audio Video Products



Brief Introduction:

This drop test device meets the requirements of IEC 60065 Clause 12.1.1 and etc.

It is suitable for repeated drop strength testing of various audio and video products with the weight over 7kg. The test times can be set in advance, and it will automatically stop when the test times reache the set value. It is easy for operators to handle.

Place the test sample on a horizontal wooden board and drop it from 50mm onto a hardwood board 50 times. The driving mechanism drives the ejector rod to raise the supporting plank to a predetermined height, and suddenly falls at a high speed (Fall acceleration is greater than 9.8), and the supporting plank falls freely onto the wooden platform. The machine is equipped with guardrails and high-level rails to prevent the product from tipping and shaking off the test bench during the test.



Technical Parameters:

Items Parameters
Voltage AC380V/50HZ
Bearing weight 100KG
Support plate 18mm composite board
Test times 1~99999, can be preset
Drop height 5cm
Wooden platform 30 mm mock floor

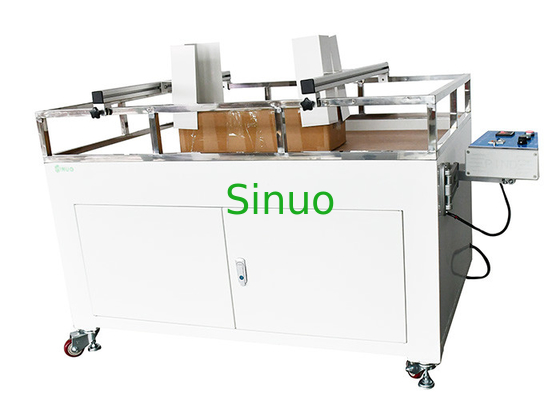

IEC 60065 Clause 12.1.1 Drop Testing Equipment For Audio Video Products 0

IEC 60065 Clause 12.1.1 Drop Testing Equipment For Audio Video Products 1
