ASTMD 4329 UV Accelerated Aging Weathering Climatic Environmental Test Chamber

ASTMD 4329 UV Accelerated Aging Weathering Climatic Environmental Test Chamber

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 Days
Payment Method: L/C, T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN882
Power Supply:
220V±5%/50Hz, 4.5KW,or Match Client’s Local Power Supply Requirements.
Control & Operation:
PLC And Touch Screen Intelligent Control System
Number Of Lamps:
8 Pieces
Temperature Range:
RT+10℃~70℃
Humidity Range:
≥75%RH
Temperature Uniformity:
≤±3℃
Temperature Fluctuation:
±0.5℃
Blackboard Temperature:
50℃~63℃
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T
Supply Ability:
20 Sets Per Month
High Light:

ASTMD 4329 Environmental Test Chamber

,

UV Accelerated Aging Environmental Test Chamber

,

PLC Environmental Test Chamber

Product Description

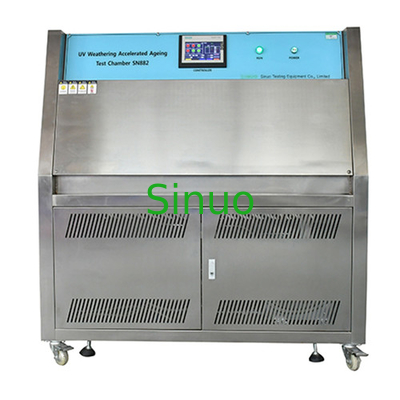

ASTMD 4329 UV Accelerated Aging Weathering Climatic Test Chamber



ASTMD 4329 UV Accelerated Aging Weathering Climatic Environmental Test Chamber 0

What is a UV test chamber?



System Overview:

The UV Accelerated Aging Weathering Climatic Test Chamber stimulate sunlight, rain, and dew environment, to inspect the damages to samples caused by sunlight, rain, and dew.

It conforms to the standards as follows:

ASTM G154 “Standard Practice for Operating Fluorescent Ultraviolet(UV)Lamp Apparatus for Exposure of Nonmetallic Materials1”.

ISO 4892-1-2016 “Plastics-Methods of exposure to laboratory light sources-Part 1: General guidance”.

ISO 11507 -2007 “Paints and varnishes - Exposure of coatings to artificial weathering - Exposure to fluorescent UV lamps and water”.

ASTMD 4329-2005 “Standard Practice for Fluorescent UV Exposure of Plastic”.



Structure:

In a stainless-steel inner chamber, two rows of four tubes are installed to simulate ultraviolet light, boosting the temperature of the inner chamber to simulate the humid environment by the humidifying system, and using the sprinkler system to simulate the rain. Three different environments are cycled through the program settings.



Techanical Parameters:

Control & Operation PLC and touch screen intelligent control system
Chamber Size

Inner size: WDH=1140×500×400mm

Outer size: WDH=1400×660×1550mm, made of SUS304 stainless steel

Lamp Wavelength

(Choose one)



UVA-340, wave band 315-400nm, radioactivity 0.35-1.2W/m2
UVB-313, wave band 280-315nm, radioactivity 0.35-1.2W/m2
UVA-351, wave band 351- 400nm, radioactivity 0.35-1.2W/m2
Number of Lamps 8 pieces
Lamp Power 40W/pc
Lamp Brand US Q-LAB or domestic
Lamp Life Approximately 1600 hours
Base Functions Temperature, humidity, light, spray, condensation
Optional Functions Irradiance display: with handheld or mounted irradiator (optional)
Illuminance adjustment: dimming system
Temperature Range RT+10℃~70℃
Humidity Range ≥75%RH
Temperature Uniformity ≤±3℃
Temperature Fluctuation ±0.5℃
Blackboard Temperature 50℃~63℃
Distance between Sample and Lamp 55mm
Center distance Of the Lamp 65~70mm
Standard Test Piece Size 75×150mm, 42 pcs
Irradiation Intensity Adjustable from 0.35-1.2W/m2
Test Time 1~9999 H,M,S adjustable
Water Source and Consumption Clean water or distilled water 8 liters / day (should be prepared by user)
Main Components French Schneider and Japan Omron
Irradiation Sensor Imported intelligent irradiation sensor, 0-5V signal output



ASTMD 4329 UV Accelerated Aging Weathering Climatic Environmental Test Chamber 1

ASTMD 4329 UV Accelerated Aging Weathering Climatic Environmental Test Chamber 2
