IEC 60884 13A Plugs Insulation Sleeve Wear Resistance Tester 4N Force

IEC 60884 13A Plugs Insulation Sleeve Wear Resistance Tester 4N Force

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 days
Payment Method: L/C, T/T
Supply Capacity: 10 Sets / Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN2128
Standard Clause:
IEC60884 Clause 24.7
Test Figure:
Figure 28
Test Stations:
One (can Be Customized)
Abrasion Rate:
30 Movements Per Minute
Test Weight:
4N
Test Stroke:
9mm
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 days
Payment Terms:
L/C, T/T
Supply Ability:
10 Sets / Month
High Light:

Plugs Insulation Sleeve Wear Resistance Tester

,

4N Force Sleeve Wear Resistance Tester

,

IEC 60884 Sleeve Wear Resistance Tester

Product Description

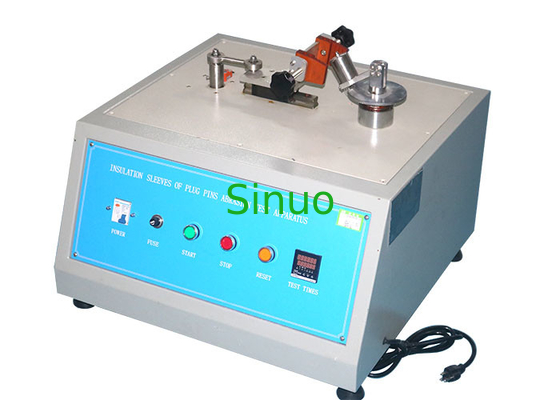

IEC 60884 13A Plugs Insulation Sleeve Wear Resistance Tester 4N Force





Standards
IEC 60884-1:2006 "Plugs and sockets -outlets for household and similar purposes- Part1:General requirements" clause 24.7 and figure 28.
BS 1363-1-2012 "13A Plugs, Socket-outlets, Adaptors and Connection Units Part1:Specification for Rewirable and non-Rewirable 13A plugs figure 9.



Performance

The scraping frequency of this test device is 30 times per minute, and the return and return are recorded as one time respectively. The number of tests can reach 0-999999 times, the number of tests can be adjusted and set. The working stroke is 9mm, and the scraped insulation sleeve is 7mm. The pressure load is 4N, the diameter of the scraper wire is 1mm, and the effective length is 6mm



Structure

It consists of a horizontal beam and a fixture seat with linear movement. The end of the beam is equipped with a U-shaped head bent by a short steel wire with a diameter of 1mm (the two points of the U-shaped are fixed vertically on the beam). The u-shaped bottom edge of the steel wire is a 6mm straight working part. The U type steel wire 6mm straight bottom edge is pressed on the insulation sleeve of the bolt, and the motor drives the fixture seat with the bolt to do reciprocating movement, so that the friction between the steel wire and the insulation sample of the bolt is tested.



Sample range, use, principle, structure and use environment

Samples and Restrictions Insulation sheath for plug pin
Test purposes It is suitable for testing the wear resistance of insulation sleeve of plug pin
The test principle of Using motor drive eccentric mechanism to achieve the reciprocating scraping of the latch jacket
Equipment structure and characteristics It consists of a horizontal beam and a fixture seat with linear movement. The end of the beam is equipped with a U-shaped head bent by a short steel wire with a diameter of 1mm (the two points of the U-shaped are fixed vertically on the beam). The u-shaped bottom edge of the steel wire is a 6mm straight working part. The U type steel wire 6mm straight bottom edge is pressed on the insulation sleeve of the bolt, and the motor drives the fixture seat with the bolt to do reciprocating movement, so that the friction between the steel wire and the insulation sample of the bolt is tested. Equipment dimensions: about 600×600×500 (mm) W×D×H, equipment weight: 70kg
Using the environment Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃ humidity 30%-90%;
