IEC62196-1 Electric Vehicle Plug And Connector Breaking Capacity Tester

IEC62196-1 Electric Vehicle Plug And Connector Breaking Capacity Tester

MOQ: 1
Delivery Period: 15days
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1105
Applied Standard:
IEC62196-1, IEC60309-1
Drive Mode:
Servo Motor Drive
Linear Stroke:
0-100mm
Conduction Time:
0-99.9s
Test Frequency:
0-10 Cycles/min
Speed Of Insertion And Separation:
0-0.85m/s Can Be Preset
Minimum Order Quantity:
1
Delivery Time:
15days
High Light:

Vehicle Plug Breaking Capacity Test Machine

,

IEC 62196 Plug Breaking Capacity Test Machine

Product Description

IEC62196-1 Electric Vehicle Plug And Connector Breaking Capacity Tester





Product information:

The test equipment is used to verify whether electrical accessories such as electric vehicle charging interfaces, industrial plugs, socket-outlets and couplers can withstand the mechanical, electrical and thermal stresses that occurred during normal operation without excessive wear or other harmful effects.

The servo motor drives the mechanism to make the test samples repeat insertion and withdrawal actions. An external load can be used for the breaking capacity test. The power on / off time, test speed, stroke, and angle can all be preset on the touch screen.



Applied standard & clauses:

IEC62196-1: 2014 “Plug, socket-outlets, vehicle connectors and vehicle inlets–Conductive charging of electric vehicle-Part1: General requirements” clause 22 and clause 23

IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 20 and clause 21



Structure:

It adopts integral frame, driven by servo motor, precision ball screw and timing belt, with color touch screen for humanized operation and powerful digital display, and PLC for intelligent control, adopts three-axis adjustable clamp for charging interface life span test.



Technical parameters:



Test Station Single, can be customized
Electrical Control Method PLC intelligent integrated control, with color humanized touch screen
Drive Mode Servo motor drive
Sample Clamping Method Mechanical clamping, the position of clamping point can be adjustable along the 3-axis fixture
Linear Stroke 0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)
Conduction Time 0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)
Speed of Insertion and Separation 0-0.85m/s can be preset,default(0.8±0.1)m/s
Test Cycles 0~999999 cycles, can be preset (A stroke is am insertion or a withdrawal of a plug or vehicle connector with its mating accessory. A cycle is composed of two strokes, one for insertion and one for withdrawal.)
Test Frequency 0-10 cycles/min,can be preset(3.75cycles/min=7.5 stoke/min)
Load Power External, providing standard required voltage, current and power factor, should be prepared by user
Optional Load Cabinet Note: only with AC load cabinet, 0-70A, voltage 0-300V
Test Contents

Appliance coupler/charging interface breaking capacity test

Appliance coupler / charging interface normal operating life test

Detection Function An open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.
Safety Protection Ground protection, short circuit protection
Equipment Dimensions & Weight W1000*D750*H1200mm, the whole machine is about 150Kg
Power Supply Single phase AC220V±10%, 50/60Hz, 10A

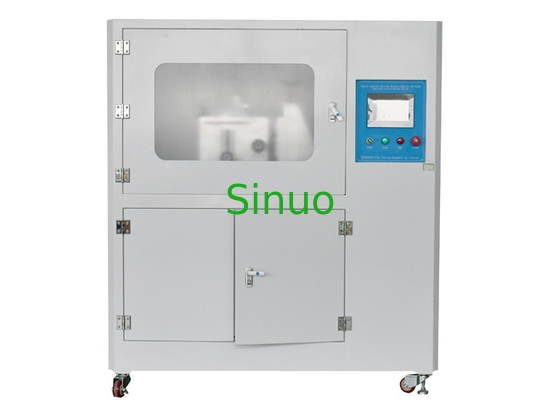

IEC62196-1 Electric Vehicle Plug And Connector Breaking Capacity Tester 0



IEC62196-1 Electric Vehicle Plug And Connector Breaking Capacity Tester 1
