IEC60898-1 50N Switch Sockets Mechanical Stress Resistant Equipment

IEC60898-1 50N Switch Sockets Mechanical Stress Resistant Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Carton Box
Delivery Period: 7 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2157-2
Control Mode:
Mechanical
Tensile Weight:
50N
Tensile Test Time:
1 Min
Tensile Control Mode:
Manual Control
Standard:
IEC60898-1
Size:
WDH=About 600×400×1000mm
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Carton Box
Delivery Time:
7 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 sets per month
High Light:

50N Mechanical Stress Resistant Equipment

,

Clause 9.13.2.3 Mechanical Stress Resistant Equipment

,

50N Electrical Appliance Testing Equipment

Product Description

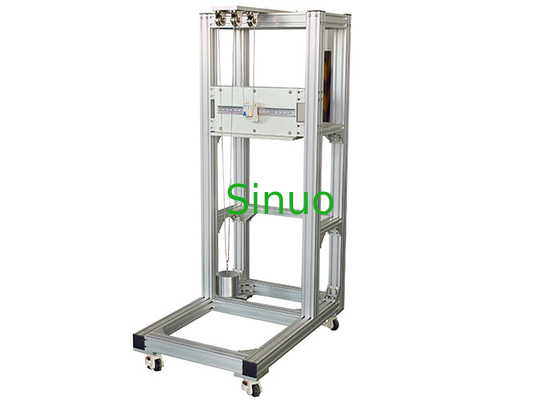

IEC60898-1 50N Mechanical Stress Resistant Equipment - Standing Structure





Product overview

The mechanical stress resistant equipment is designed according to the relevant requirements of IEC60898-1, IEC61009-1, IEC60934:2007.
It is suitable for switch sockets, surface-mounted installation boxes, miniature circuit breakers, contactors, plastic cases and other products to verify that the circuit breaker is in the correct position.
Impact resistance of exposed parts that may be subjected to mechanical impact during normal use.



Equipment principle
Designed in accordance with the requirements of
IEC60898-1, IEC61009-1, IEC60934:2007, use weights and soft ropes to pair the test product installed on the guide rail (should be installed on the mounting rail rigidly fixed on the vertical rigid wall according to normal conditions of use, but not connected Cable, without any cover or cover) apply a 50N vertical downward force on the front side (do not apply violently) for 1 min, and then apply a 50N vertical upward force for 1 min. Manually pick and place the weight to control the force time.



Main technical parameter:



Control mode Mechanical
Tensile weight 50N
Tensile test time 1min
Tensile control mode Manual control
Size WDH=About 600×400×1000mm



Tensile test process
Install the samples separately as shown in the left and right diagrams below. The samples are not connected to cables, and there is no cover or cover plate. First apply a 50N vertical downward force on the front of the test product according to the left picture, but do not apply it violently for 1 min, then apply a 50N vertical upward force as shown in the right picture for 1 min, and judge whether the test product is qualified according to the standard.

IEC60898-1 50N Switch Sockets Mechanical Stress Resistant Equipment 0



IEC60898-1 50N Switch Sockets Mechanical Stress Resistant Equipment 1

IEC60898-1 50N Switch Sockets Mechanical Stress Resistant Equipment 2
