| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Carton Box |
| Delivery Period: | 7 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 50 sets per month |

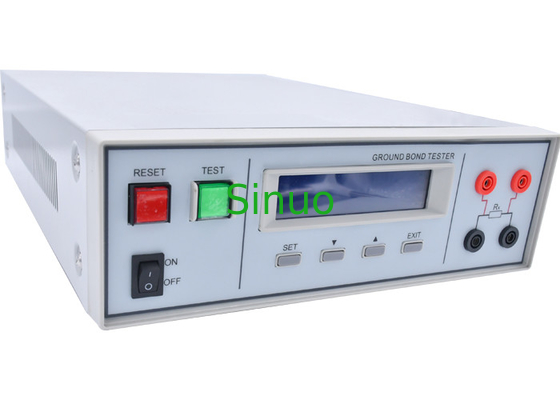

IEC60335-1 Electronic Ground Resistance Test Equipment Fuse 5-600 mΩ
Product information:
■ Automated test function, multiple test functions can be freely combined (the instrument uses four-terminal method to output test current, which is stable and reliable, and is widely used in grounding reliability testing of mechanical and electrical product production lines; suitable for safety regulations in research and development laboratories and quality inspection rooms ) Test; In order to adapt to the spirit of ISO quality, PLC or RS interface communication can record both PASS / FAIL status and test data and upload and save for analysis and use)
■ Simple user operation (real-time display of measurement results, free setting of parameters, and simultaneous sound and light alarm prompt).
■ Software calibration (the instrument has a software calibration function to simplify parameter calibration and avoid dangerous operations for opening the case for maintenance).
■ CPU technology boost and up current, 50 / 60Hz dual frequency test to meet the test requirements of domestic / export products.
■ Upper limit preset, automatic reminding of alarm information, intelligent memory analysis function, system self-check function and automatic protection function.
■ 16 × 2 LCD display.
Applied Standard:
■ Meet the national standards of the People's Republic of China such as GB4706.1, GB4943, GB7000.1, GB3883.1, and GB / T12113, as well as the international electrical committee standards such as IEC60335-1, IEC60950, IEC60598-1, IEC60745-1, and IEC60990.
Technical Parameters:
| Model | SN9613X |
| Input voltage | 220V±10% |
| Input frequency | 50/60Hz±5% |
| Fuse | Fuse 5A/250V |
| Ground resistance test | |
| No-load output voltage | ﹤8VAC |
| Output current range and accuracy | AC 5~30A ±(1% setting) |
| Output current stability | Less than 0.3%(10A/100 mΩ) |
| Output frequency range and accuracy | 50Hz/60Hz ± 0.2% |
| Ground resistance test range and accuracy |
5-600 mΩ (5-10A)； 2-200 mΩ(11-25A)； 2-150 mΩ(26-30A)； ±(2% measurement) |
| Test time range and resolution | 0.5-999.9s, resolution 0.1s, 0s is for continuous output |
| Function parameter | |
| PLC remote control device | Signal input: start |
| Display | 16 * 2 blue screen character LCD display |
| Communication Interface | RS232(Optional) |
| Calibration method | Software correction |
| Working environment | 0-40℃, 20-80%RH |
| Dimensions | 280mm(W)×89mm(H)×370mm(D) |
| Accessories | Power cord × 1, test clip × 2, fuse× 1 |
|
|
