| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 10 Sets Per Month |

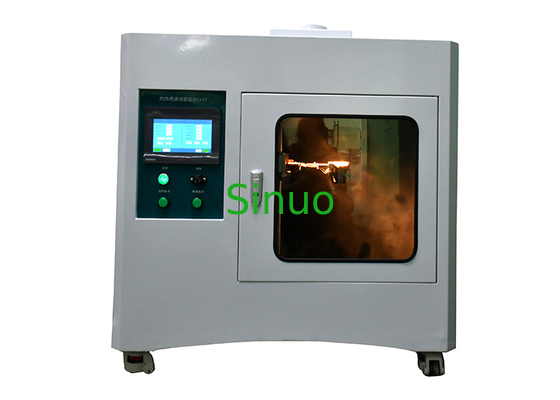

IEC60950-1:2005 1mL/min Hot Flaming Oil Test Device Flammability Test
Product overview:
The equipment is used for testing the protective performance of the samples at the bottom of the fire protection shell of electrical and electronic products such as electronic instruments, electrical instruments, information technology equipment, electrical business equipment, etc. The heating ring heating spoon will heat 10mL of the specified performance (38MJ/L 0.845g/mL ~ 0.865g/mL) fuel oil until burning for 1min. Motor driven oil spoon rotation according to a certain height (100mm) and a certain flow (1mL/s) all smoothly poured in the sample (fire protection shell) in the center of the hole, in order to ignite the test product under the specified distance (50mm) and density (40g/m2) of the ignition bedding to evaluate the test product's fire protection performance.
The test chamber is equipped with a fume hood.
Comply with the standard:
GB4943.1-2011 "Information Technology equipment safety part 1: General requirements" article 4.6.2 and Appendix A.3
Iec60950-1:2005 Information Technology Equipment-safety-Part1 :General Requirements clause
4.6.2, Annex a. 3.
Technical parameters:
| Parameter model | SN7713 |
| Working voltage | Match client's local power supply requirements |
| Test oil | Average calorific value 38MJ/L, mass per unit volume between: 0.845g/mL～0.865g/mL, flash point: 43.5℃~93.5℃ |
| Volume of ladle | >10mL |
| Hot flaming oil burning time | 1 min (1s~999999s can be preset) |
| Hot flaming oil pouring speed | 1 ml/s |
| Hot flaming oil pouring height | 100mm |
| Hot flaming oil pouring time | 10s (1s~999999s can be preset) |
| Ignition bedding material | Bleached CHEESECLOTH of approximately 40 g/m2 |
| Distance between ignition bedding material and sample | Ignition bedding material is under the sample about 50mm |
| Test area background color | Black |
| Equipment size & weight | 1130mm* 600mm* 1400mm, with a vent port of ф100mm, 147KGS |
