| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Carton Box |
| Delivery Period: | 20 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 50 sets per month |

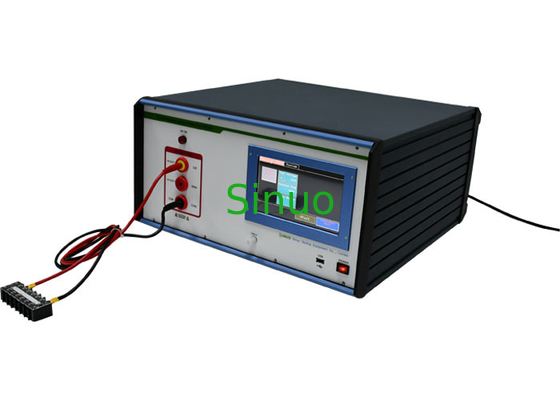

IEC60950 1.2/50 μS Impulse Voltages Generator 2 Internal Resistances
Product information:
This impulse voltage test generator is required by IEC60335-1:2004, IEC60950-1:2005,IEC60065:2005,GB4706.1and etc.
The equipment is used to verify transient overvoltages to which household and similar appliances, information technology equipment, and audio and video electronic equipment may be subjected.
This impulse voltage test generator is a standard lightning wave test device with waveform 1.2/50µs. Wavefront time is 1.2µs, wave after time is 50µs, it is a destructive tester. The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.
Technical Parameters:
| Model | SN1104 |
| DC high voltage | Max. 12.5kV |
| Impulse voltage wave | Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % Note: the waveform will be shown by an external oscilloscope (oscilloscope should be prepared by user) |
| Instrument internal resistance | 12Ω ± 10% |
| Internal resistance converter box | 500Ω - 10% is optional |
| Peak voltage: 300 V~ 12,500V | 0-12500V Low: 300 V~ 2,500V; High: 2,500 V~ 12,500V |
| Impact interval time | 5 ~ 99s |
| Impact cycles | 1 ~ 9999 |
| Polarity | Positive and negative |
| Working power source | Match client's local power supply grid |
| Dimension | 630mm×600mm×380mm |
| Weight | 30 KG |
|
|
