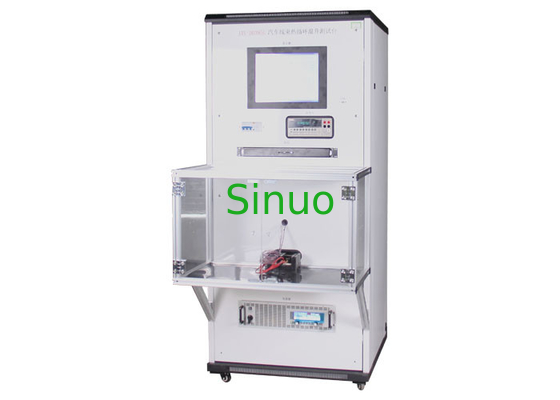

Wire Harness Thermal Cycle Temperature Rise Test Bench Touch Screen

Wire Harness Thermal Cycle Temperature Rise Test Bench Touch Screen

MOQ: 1
Price: Negotiable
Standard Packaging: Plywoode
Payment Method: T/T, Western Union
Supply Capacity: 2 per months
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN-DD385A
Output Constant Adjustable Test Current:
DC3~200A
Working Mode:
Continuous / On-off / Automatic Mode
Measuring Range::
0 ~ 260℃ Accuracy 0.3% Reading +1℃
Temperature Scanning Speed:
1 ~ 255 Seconds
Data Recording::
Computer Storage
Control Screen:
Touch Screen
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywoode
Payment Terms:
T/T, Western Union
Supply Ability:
2 per months
High Light:

IEC 60439 Temperature Rise Test Bench

,

260℃ Accuracy Temperature Rise Test Bench

Product Description



Wire Harness Thermal Cycle Temperature Rise Test Bench Touch Screen


This product complies with the following standards:

CURRENT and temperature increase test method for ELECTRICAL connectors UL310, UL498, UL817, UL941, UL1059, IEC60309, IEC60998, IEC60669, IEC61058, IEC60439, EIA-364-70 and other electrical accessories The relevant standards were developed. It can be used to assess the surface heating of electrical accessories when the load current is connected, and whether the temperature rise of the electrode meets the standard requirements.

Product overview:
Adopt high precision 200A power supply.
Output constant adjustable test current: DC3 ~ 200A two gear continuous optional.
Working mode: continuous mode, on - off mode, automatic temperature control mode.
Measuring range: 0 ~ 260℃ accuracy 0.3% reading +1℃; Resolution: 0.1℃.
Temperature probe can be charged AC300V test, will not damage the instrument.
Specifications of test chamber: width 800mm× depth 800mm× height 1800mm, weight about 150kg, with mobile casters.

Temperature data recording: automatically completed by the computer.

Accessories list:


No.Product NameBrandUnitNumber
1Custom cabinetsSinuounit1
2Integrated touch screen LCD display Industrial computercustomunit1
3Operating system + program control softwarecustomunit1
4Multichannel temperature rise testerChinese famous brandunit1
5Dc power supplyChinese famous brandunit1
6Program controlled current sourcecustomunit1
7Temperature rise test fixturecustomset1
8Voltage-current collectorcustomset1
9Programmed time controllercustomset1
10Voltage switch and electrical hardware accessoriesChinese famous brandset1


Computer test software can be configured, Excel report can be exported:

Wire Harness Thermal Cycle Temperature Rise Test Bench Touch Screen 0
