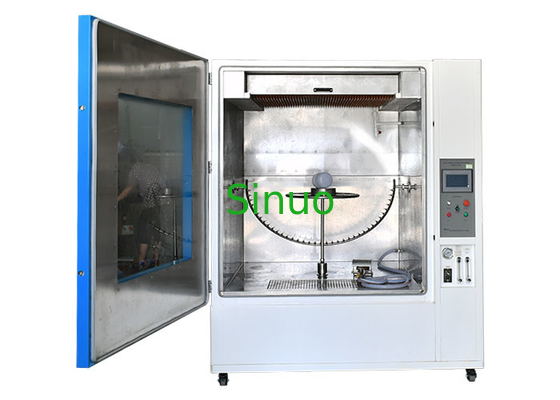

IEC 60529 IP Code Protection Degrees Comprehensive IPX1~4 Test Chamber



Product introduction

The waterproof degree test chamber is designed and manufactured according to requirements of IEC 60529: 2013 IPX1, IPX2, IPX3 and IPX4. It is used for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.



Technical Parameters:



Model SN4413-1400
Inner Chamber 1400mm*1400mm*1400mm
Outer Chamber Approx. 1900mm*1560mm*2400mm
Outer Chamber Material Spray treatment, concise, beautiful and smooth
Inner Chamber Material High quality stainless steel plate
Weight Approx.300KG
Turntable
Rotating Speed 1 ~5 rpm adjustable
Turntable Diameter 600mm
Turntable Height Adjustable height: 200mm
Turntable Bearing Capacity Max. 20KG
Turntable Function

IPX1 turntable parallel

IPX2 can achieve 15° by adding the incline device on the turntable

IPX3/4 turntable can rotation 360°

IPX1/2 Dripping
Dripping Hole Diameter φ0.4 mm
Dripping Aperture Spacing 20 mm
IPX1, IPX2 Dripping speed (water flow)

1 +0.5 0mm/min(IPX1)

3 +0.5 0mm/min(IPX2)

Dripping Area 1000X1000 mm
Distance between Drip Box and Sample 200 mm
IPX3/4 Oscillating Tube
Oscillation Tube R600 mm
Distance between Nozzle Sample Within 200mm
Spray Aperture Spacing 50 mm
Oscillating Tube Swing Angle

±60° (IPX3),

approximately ±160°(IPX4)

(Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)

Angle Between Two Holes

120°(IP3)

180°(IP4)

Needle Hole φ0 .4 mm
Oscillating Speed IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole 0.07 L/min +5%
Spray Pressure 80-150Kpa
IPX3/4 Spray Nozzle





Nozzle Holes

121 holes of Ф0.5mm

1 hole at the centre

1 inner circles of 12 holes at 30° pitch

4 outer circles of 24 holes at 15° pitch

Water Flow 10L(min)
Spray Nozzle Spherical Diameter 102 mm
Moving Shield Material Stainless steel
Spray Nozzle Material Brass
Handle and Valve Material 304 stainless steel
Configured Pressure Gauge 0~0.6MPa
Water Spray Pressure 50~150(kpa)
Electrical Control
Controller LCD touch controller
Test Time 1-999,999min (can be set)
Turntable Control Reduced motor, speed is stable
Oscillating Control Stepping motor, oscillating tube swings stable
Flow and Pressure Control Use manual valve to control flow and pressure, glass rotameters to indicate flow, stainless steel case spring pressure gauge to indicate pressure
Use Environment
Ambient temperature RT10~35℃ (average temperature within 24H≤28℃)
Environment humidity ≤85%RH
Power supply 220V 50HZ single-phase three-wire + protective ground wire, the grounding resistance of the protective ground wire is less than 4Ω; the user is required to configure an air or power switch with corresponding capacity for the equipment at the installation site, and this switch must be independent and dedicated for the use of this equipment
Power Approx. 3KW
Protection System Leakage, short circuit, water shortage, motor overheating protection, alarm prompt
