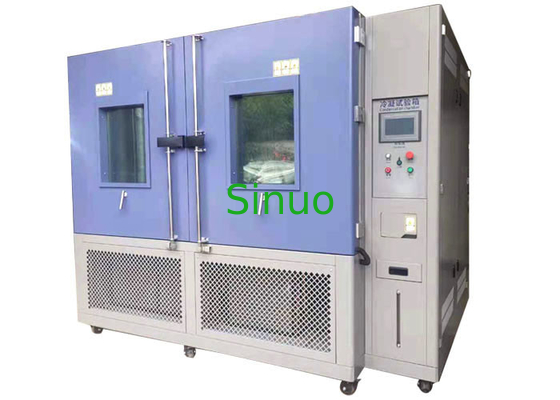

VW 80000-2017 Motor Vehicle Components Condensation Test Chamber
Product overview:
This condensation test chamber meets the condensation test requirements of .VW 80000-2017,DIN EN ISO 6270-2, GS95011-4-2004, DIN 50017, etc.
It simulates the condensation on electronic modules in motor vehicles. It is meant to evaluate the robustness of electronic modules with respect to condensation.
Technical parameters:
Size | Working area | 600*500*830mm(W*D*H) |
External size | Approx. 1200*750*1300mm(W*D*H) | |
Performance | Temperature range | Ambient~60℃ (common used temperature: 38℃/49℃/60℃) |
Temperature fluctuation | ≤1℃ (≤±0.5℃, tested according to GB/T5170-2008) | |
Temperature accuracy | 0.1 ℃ | |
Temperature deviation | ±2℃ | |
Humidity range | 100%RH (+0%, -5%, during condensation) | |
Heating rate | ≥10℃/30min (with load of 20KG steel,meet condensation test of VW80000-2013) | |
Cooling rate | ≥65℃/75min (with load of 20KG steel,meet condensation test of VW80000-2013) | |
Temperature and humidity measuring parts | Use high-precision A-level PT100 temperature sensor for temperature measurement | |
Heating method | Electric heating, PID adjustment, actuator: solid state relay | |
Heating system | New-type ceramic heating frame, with heating wire imported from Germany in the middle, thick wire diameter, high temperature resistance, dry burning resistance | |
Humidification system | External humidification, the humidification tube adopts U-shaped design and over-temperature probe hole, | |
Dehumidification system | Using evaporator coil dew point temperature laminar flow contact dehumidification method | |
Water supply system | The humidification water supply adopts automatic control, and the residual water can be recycled, saving water and reducing consumption | |
Cooling System | Fully enclosed Tecumseh compressor imported from France, using R404 and R23 DuPont environmentally friendly refrigerant | |
Wind tunnel | Forced circulating air duct to ensure uniform temperature in the working room; heaters, coolers, and temperature sensors are installed in the air duct | |
Condensate outlet | With outlet holes for studio condensate and unit condensate | |
Timing range | 1~9999 mins/hours | |
Materials | Outer wall material | A3 iron plate sprayed |
Inner wall material | SUS304 Stainless steel plate | |
Insulation material | Rigid polyurethane foam | |

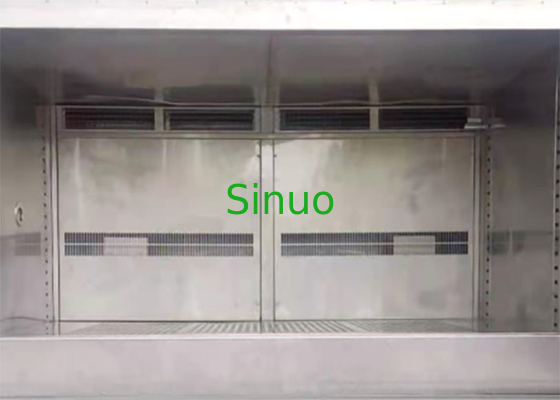

Observation window | Three-layer explosion-proof tempered glass window | |
Lead hole | 2 Φ100mm lead holes, with cover and soft plug, located on the left and right walls of the chamber | |
Sample rack | 2PCS, SUS304 stainless steel material, adjustable spacing storage track, sample rack can be adjusted up and down according to needs, evenly bearing 30KG/layer. | |
Light | There is a lighting lamp on the top of the observation window, which is controlled by the switch outside the door, which is convenient and clear to observation | |
Movable casters |
4 movable casters
|
|
Humidification tank | High quality 304 stainless steel water tank | |
Control element |
Using MCGS programmable temperature and humidity controller (7-inch 16-bit true color touch screen); English menu operation mode, 120 groups memory program, each program group contains 1200 program segments, all loops, up to 999 times. Controller: The controller with English display has the function of self-diagnosis, prompts the cause of failure and treatment method, records test data and process, and has a standard RS232 or U disk communication interface. |
