IEC 60529 IPX9K High Pressure Water Jet Testing Equipment 512L
Product introduction
Standard:IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050-9, ISO20653 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects), protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).
Application:It is used to inspect the enclosures of the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.
Test sample:Products should pass IPX9 degrees waterproof test, such as automotive and motorcycle parts, electrical and electronic industries.
Structure Features:

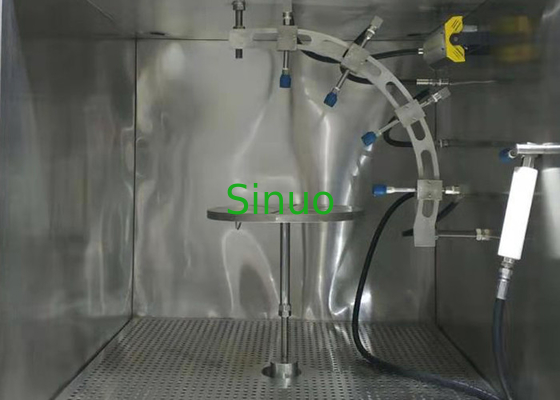

Outside enclosure is made of sprayed high quality steel plate and inner chamber is made of SUS304 stainless steel, the upper part of the test chamber is for testing and the control, the lower part of the test chamber consists of imported Italian high-pressure pump and solenoid valve, constant temperature and backwater tanks (SUS304 stainless steel), turntable motor (Panasonic motor) and deceleration transmission mechanism.
All control settings, water temperature, nozzle control, pressure, time, flow requirements can be controlled by PLC and set on 7 " touch screen.
Technical Parameters:
| Control & Operation | PLC and touch screen intelligent control system |
| Chammber Size |
Inner size: WDH=800×800mm×800mm (can be customized) Outer size: WDH=1400×1000mm×1750mm |
| Fan Jet Nozzles | Manufactured according to IEC 60529 figure 7, or can be customized |
| Water Jett Pressure | 8000-10000Kpa |
| Water Jet Flow |
14-16L/min Equiped with high temperature and high pressure electronic flowmeter |
| Water Jet Angle | 0°, 30°, 60°, 90° |
| Test Duration | 30s per each angle |
| Overall Test Time | 0-99H59M59S, can be preset |
| Test Water Temperature | 80±5°C |
| Distance between Nozzle and Sample |
a) for small enclosures (largest dimension less than 250 mm): R125±25mm b)for large enclosures (largest dimension greater or equal to 250 mm): R175±25mm |
| Impact Force | The set-up for measuring the impact force of the water jet is according to IEC 60529 figure 10 |
| Turntable | Diameter: Φ400mm, rotation speed: 1-10r/min, bearing capacity:≤ 50kgs |
| Power Load to Sample | Optional, provide test socket, AC220V |
| Water Circulation System | The test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage. |
| Safety Protection | Phase sequence protection, leakage protection, short circuit protection, water shortage protection, abnormal protection. |
