| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 50 sets per month |

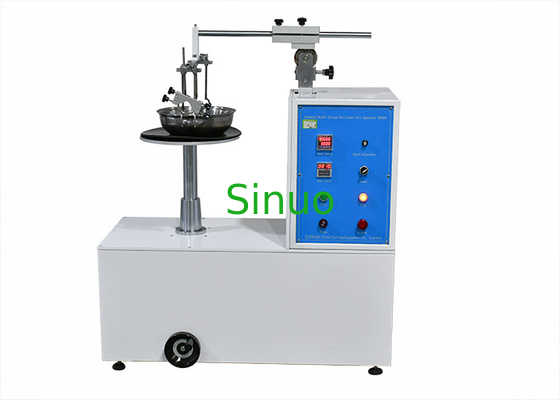

BS EN 12983-1 Double Handle Cookware Fatigue Resistance Test Equipment
Product information
The design of the handle fatigue resistance test apparatus of cookware complies with BS EN 12983-1:2020 clause 7.6 and Appendix E, figure E.1.
It is used to perform fatigue resistance test on cookware handles. The handle assembly should withstand 15,000 cycles of operation, and the handle or connecting parts will not be permanently deformed or loosened. Without affecting safety and performance, the deformation within 5% of the total length from the end can be ignored.
Technical Parameters
| Test station | 1 |
| Drive mode | Electric + eccentric wheel mechanism |
| Eccentric wheel diameter | Φ80 mm |
| Guide wheel diameter | Φ26mm |
| Test speed | 5-30 times/min, adjustable |
| Rubber plate | 5mm thick, hardness 50±10 Shore |
| Sample fixture | set of single-handle fixing jig, 1 set of double-handle fixing hook |
| Lifting height of the level surface | 300mm |
| Test mass | One of each 2kg, 1kg, 500g |
| Counter | 0-999999 times can be set |
| Power supply | Match client's local power grid |
| Equipment dimensions | L1000mm*W450mm*H1210mm |
| Equipment weight | 135kgs |
|
|
