IEC 62196-1 Fig12 Electric Vehicle Connector Terminal Mechanical Test Equipment

IEC 62196-1 Fig12 Electric Vehicle Connector Terminal Mechanical Test Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN11012
Applied Standard:
IEC 62196-1: 2020
Applied Clause:
Clause 13.3.1
Applied Figure:
Fig12
Test Station:
Single
Control Method:
Buttons Control
Test Rate:
(10 ± 2) R/min
Gyration Diameter:
75mm
Test Height:
210-600mm
Load Weight:
0.4-22.7Kg
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
1 set per month
High Light:

IEC 62196-1 Terminal Testing Equipment

,

Clause 13.3.1 Terminal Testing Equipment

,

75mm Gyration Terminal Testing Equipment

Product Description

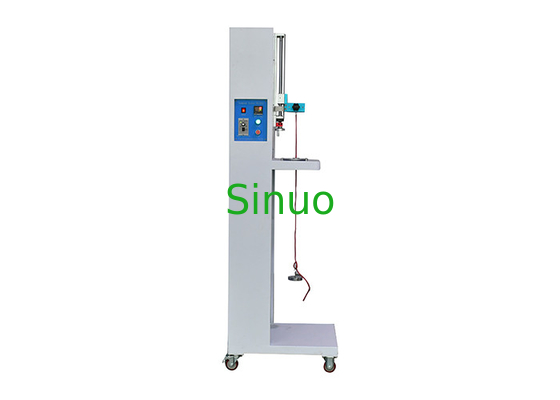

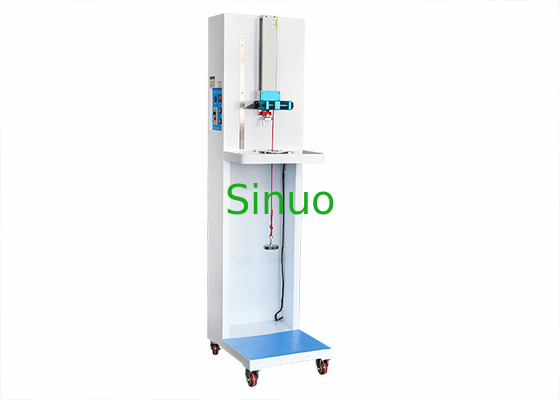

IEC 62196-1 Electric Vehicle Connectors Screw Terminal Testing Equipment



Equipment Overview:

This testing machine conforms to IEC 62196-1:2020 clause 13.3.1 fig12, table 3, etc. It is used to process mechanical tests on terminals, for judging whether the design and the structure of the new terminals are fitted with new conductors and of the minimum and the maximum cross-sectional areas is good. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage.


The testing times can be preset before the test, and the test machine will stop automatically with completion alarm when the preset test times are reached.



Technical Parameters:

Parameter Name Parameter Data
Power Supply Match client's local power supply
Test Station Single
Test Rate

(10 ± 2) r/min for IEC 62196-1:2020, IEC 60884-1, etc.

(9±1) r/min for other standards such as UL 498

Diameter of Gyration

75mm for IEC 62196-1:2020, IEC 60884-1, etc.

76mm for other standards such as UL 498

Test Times 1-999999times
Load Weight 0.4-22.7Kg
Test Height 210-600mm adjustable
Diameter of Bushing 6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm
Equipment Dimensions & Weight L 650mm* W 500mm * H 2010mm, approx. 68KG



Specimen Installation:
Connect the terminal to the corresponding conductor, then clamp the terminal tighten.
Pass the conductor through the corresponding bushing and hang the corresponding weight.


IEC 62196-1 Fig12 Electric Vehicle Connector Terminal Mechanical Test Equipment 0
