| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 set per month |

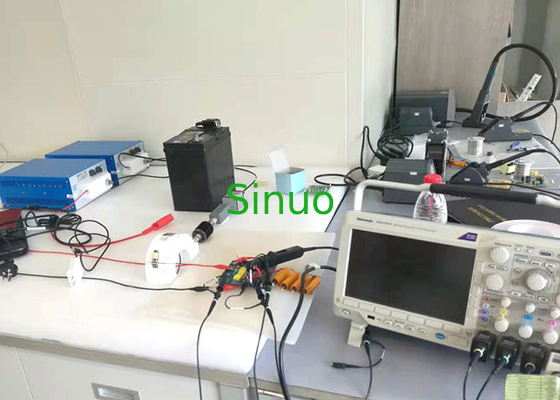

IEC 61000-4-6 and ISO 11452-4 Conducted RF Immunity Test System
System configuration:
Lower test equipment wavelength (the EUT) than the size of the frequency (e.g., 80MHz or less) much less interference wave, in contrast, leads apparatus (including power lines and the overhead lines extend, a communication line interface length of cable, etc.) is an interference wave may reach several wavelengths or longer. Apparatus becomes the passive antenna lead, susceptible to interference from RF fields induced near field electromagnetic RF voltage and current ultimately affect device formation.
The bulk current injection (BCI) test method is based on current injection into the wiring harness using a current probe as a transformer where the harness forms the secondary winding.
Technical parameters:
| Model and Name | Basic parameters | Quantity |
| Signal generator | Frequency range: 9 kHz ~ 1 GHz | 1 |
| Power Amplifier | Frequency range: 100kHz ~ 400MHz; Output Power: 100W | 1 |
| CDN M2 | M2 ,32A CDN network and its calibration kit, attenuators, | 1 |
| CDN M3 | M3,32A CDN network and its calibration kit, attenuators, | 1 |
| RF Power Meter | RF power meter: 9kHz-3GHz | 3 |
| EM Injection Clamps |
10kHz - 1GHz: 100 watts COUPLING APERTURE 23mm Include: calibration fixture |
1 |
| Aadapter | 50/150 Ohm adapter | 2 |
| 50 Ohm | 50 Ohm closing | 1 |
| ATT | 6 dB, 60 W damper | 1 |
| Bulk Current Injection | 10 kHz - 400 MHz 100W inner diameter | 1 |
| Calibration Fixtures | Calibration Fixtures for Bulk Current Injection | 1 |
| CURRENT PROBE |
Frequency: 10 kHz – 400 MHz Internal diameter: 40 mm |
1 |
| Test software | Automatic calibration radiated immunity test software, compliance with IEC61000-4-6, ISO11452-4 | 1 |
| System integration | Systems design, integration, project management, factory acceptance, site installation, commissioning and training | 1 |
- M2+3 connection network
- EM clamp for connecting to an at least 20 mm diameter cable
- The calibration accessories of the EM clamp (calibration fixture)
- 50/150 Ohm adapter (2 pcs)
- 50 Ohm closing
- 6 dB, at least 60 W damper
- current measuring ring for the control measurement
- the necessary connecting RF cables for all the above mentioned.
Test Conducted RF immunity schematic
|
|
