| MOQ: | 1 Set |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10 Sets / Month |

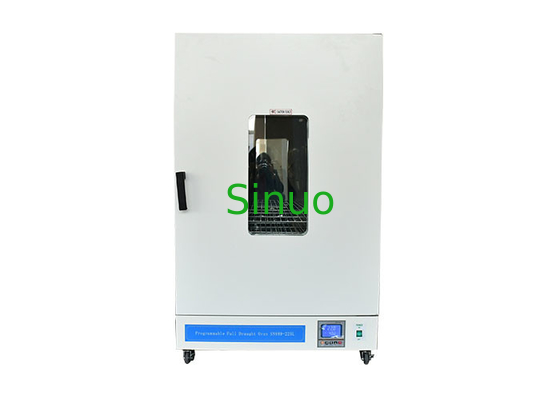

Programmable Heating Oven Thermal Aging Chamber 225L
Product Information:
This oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories, scientific research units, etc. It is required by many standards such as IEC 60950-1: 2005 and IEC 60950-1:2013 clause 2.10.8.2, clause 4.2.7, IEC 60695-10-3 etc.
Technical Parameter:
| Power supply | Match client's local power supply requirements |
| Temperature Range | RT+10°C ~300°C |
| Display Resolution | 0.1°C |
| Temperature Fluctuation | ±1°C |
| Power Rating | 2600 W |
| Temperature Uniformity | ±2.5°C |
| Display Method | LCD screen |
| Volume / Working Area Size (W* D* H) | 50cm*60cm**75cm |
| Outer Dimensions (W* D* H) | 70cm*71cm*110cm |
| Communication Interface | R485 interface on the right side of the device |
| Structure Type | Vertical |
Structural Features:
☆ Forced convection ventilation structure, good temperature uniformity.
☆ Using microcomputer intelligent LCD temperature controller, high precision, no overshoot, large LCD screen, multiple sets of data displayed on one screen, temperature correction function, timing function, easy to use, and more user-friendly design.
☆ The box body is made of high-quality thin steel plate.
☆ The corners of the working room are designed with arc transition, which is convenient for cleaning in the box. The working room is made of high-quality stainless steel, and the shelf bracket can be freely loaded and unloaded.
☆ The air inlet can be opened and closed freely, the air duct structure is reasonable, and the temperature uniformity in the working area is good.
☆ The door and box body adopt silicone rubber sealing ring, which has good sealing performance.
☆ Equipped with leakage protector
☆ Equipped with an auxiliary temperature controller to ensure that the product can still work normally when the main temperature controllor is out of control.
☆ Equipped with 485 interface for connecting to a computer to realize remote control and alarm.
☆ Equipped with programmable multi-segment LCD temperature controller.
