IEC 60320-1 Coupler Maximum Minimum Force Withdrawal Test Apparatus

IEC 60320-1 Coupler Maximum Minimum Force Withdrawal Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 20 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2102
Applied Standard:
IEC60320-1
Applied Clause:
Clause 16
Standard Figure:
Figure 12
Control:
Electrical
Display:
Meters
Test Content:
Maximum And Minimum Withdrawal Force
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
20 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
20 Sets Per Month
High Light:

IEC 60320-1 Coupler Withdrawal Test Apparatus

,

Clause 16 Coupler Withdrawal Test Apparatus

Product Description



IEC 60320-1 Coupler Maximum Minimum Force Withdrawal Test Apparatus



Equipment overview:

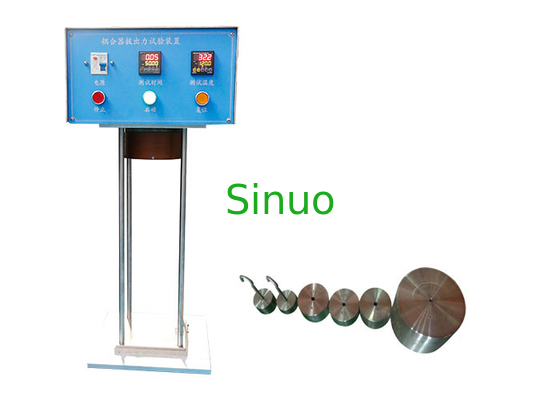

The coupler withdrawal testing apparatus is designed and manufactured according to IEC60320-1 clause 16 and figure 12. It is used to check the maximum withdrawal force of electric appliances coupler. The minimum withdrawal force is achieved by inserting a single-stage latch through hand-held mode.



Technical Characteristics:



A. Power source: 120V,50/60HZ

B. Coupler’s maximum and minimum withdrawal force matching table

IEC 60320-1 Coupler Maximum Minimum Force Withdrawal Test Apparatus 0

C. Coupler’s maximum withdrawal force weights table



Maximum withdrawal force Main weights Supplement weights
50N 45N (with hook) 5N
60N

45N (with hook)

+4N+5N

6N
Note: The hook’s weight is included in the 45N weight.


D. Coupler’s minimum withdrawal force weights table



Minimum withdrawal force Weights
1.5N 1.5N weight and 10A live wire and ground single-stage latch
2N 2N weight and 10A live wire and ground single-stage latch
Note: The single-stage latch’s weight is included in the corresponding weight.


E. With standard 10A hot-resistant , 10A and 16A very hot-resistant devices.



Structural characteristics:


The device consists of a control cabinet, mounting plate, the heating device, electric appliance inlet (standard 10A hot-resistant , 10A and 16A very hot-resistant electric appliance inlets), weights hooks, supplement weights and the main weight.
Fix the electric appliance inlets to the C floor plate of the heating device which is shown in figure, make the pins of the electric appliance inlet are vertica and the free end of the pins are downward. Select the corresponding weight according to the appropriate sample, insert the sample connector into the electric appliance inlet, hang the corresponding weight at the wire’s end of the sample connector. Should not shake the sample connector when hang the main weight, and allow the supplement weight dropping from a height 5CM on the main weight, the sample connector should not be retained in the electric appliance inlets. For the sample connectors under the hot-resistant and very hot-resistant test conditions, should turn on the heating function, then process the maximum withdrawal force test after the temperature reaches to the setting value.
