BS EN 12983-1 Cookware Handle Fatigue Resistance Test Apparatus

BS EN 12983-1 Cookware Handle Fatigue Resistance Test Apparatus

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1604
Test Contents:
Fatigue Resistance Test
Applied Standard:
BS EN 12983-1
Applied Clause:
Clause 7.6 And Appendix E
Appled Figure:
Figure E.1
Test Station:
Single Station
Test Speed:
5-30 Times/min
Rubber Plate Thickness:
5mm
Rubber Plate Hardness:
50±10 Shore
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 sets per month
High Light:

300mm Fatigue Resistance Test Apparatus

,

Cookware Fatigue Resistance Test Apparatus

,

2kg Electrical Appliance Testing Equipment

Product Description



BS EN 12983-1 Cookware Handle Bending Strength Test Apparatus



Product information:

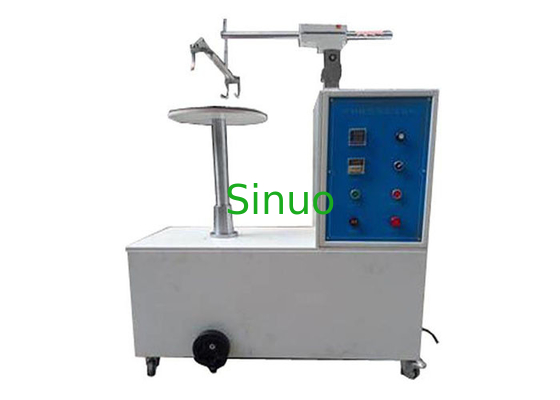

It is used to perform fatigue resistance test on cookware handles. The handle assembly should withstand 15,000 cycles of operation, and the handle or connecting parts will not be permanently deformed or loosened. Without affecting safety and performance, the deformation within 5% of the total length from the end can be ignored.



Applied standard:


The design of the handle fatigue resistance test apparatus of cookware complies with BS EN 12983-1:2020 clause 7.6 and Appendix E.



Technical Parameters:



1. Power supply: AC220V, 50HZ

2. Test station: 1

3. Drive mode: electric + eccentric wheel mechanism

4. Test speed: 5-30 times/min, adjustable

5. Rubber plate: 5mm thick, hardness 50±10 Shore;

6. Sample fixture: 1 set of single-handle fixing jig, 1 set of double-handle fixing hook;

7. Lifting height of the level surface: 300mm;

8. Test mass: one of each 2kg, 1kg, 500g;

9. Counter: 0-999999 times can be set, when the cumulative number of times reaches the set value, the buzzer will alarm and the equipment will stop running.



Test station Single
Drive mode Electric + eccentric wheel mechanism
Test speed 5-30 times/min, adjustable
Rubber plate 5mm thick, hardness 50±10 Shore
Sample fixture set of single-handle fixing jig, 1 set of double-handle fixing hook
Lifting height of the level surface 300mm
Test mass One of each 2kg, 1kg, 500g
Counter 0-999999 times can be set
Power supply Match client's local power grid



BS EN 12983-1 Cookware Handle Fatigue Resistance Test Apparatus 0
