IEC 60061-3 B22d Lamp Caps And Lampholders Go And No Go Gauges

IEC 60061-3 B22d Lamp Caps And Lampholders Go And No Go Gauges

MOQ: 1
Price: Negotiable
Standard Packaging: Plastic Case
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN991-B22
Applied Standard:
IEC 60061-3
Gauge Type:
Go And No Go Gauges
Material:
Die Steel
Test Specimen:
B22 Lamp Caps And Lampholders
Structure:
Refer To The Specific Figures
Application:
Control Of Interchangeability And Safety
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plastic Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100 sets per month
High Light:

B22d Lamp Caps

,

IEC 60061-3 Lamp Caps

,

Die steel B22d Lampholders

Product Description



IEC 60061-3 B22d Lamp Caps and Lampholders Go and No Go Gauges



Product Overview:



These lamp gauges are made of Japan DC53 material, Rockwell hardness 58-60 °, and they meets the requirements of IEC 60061-3:2015 “Lamp caps and holers together with gauges for the control of interchangeability and safety –Part 3:Gauges,MOD”.



B22d Go gauge for lamp cap (7006-10-8)

Purpose: To test the size Amax, Nmin, D1min and D1max of the B22d lamp cap on the finished lamp and the radial position of the pin

How to use:

a) Insert the lamp cap into the gauge until its pin passes through the slot Q.

b) Then turn the lamp cap to a slight angle and press it so that the pin is in close contact with the S surface.

c) The contact surface at this position should not be lower than the X surface, nor should it protrude from the Z surface.

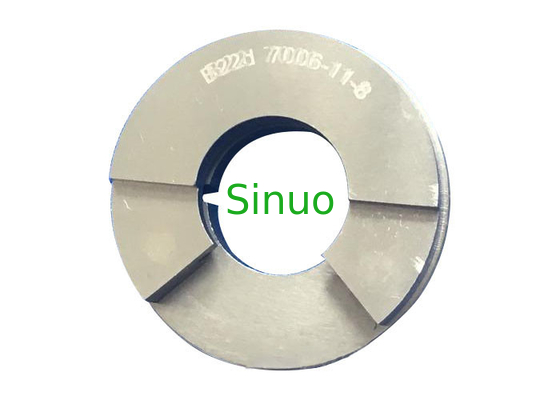

B22d No Go gauge for lamp cap (7006-11-8)

Purpose: To inspect the size Amin of the B22d lamp cap on the finished lamp separately

How to use: If the gauge cannot fit into the lamp cap of the finished lamp only by its own weight, the lamp cap shall be deemed qualified



Sinuo Guages List as per IEC 60061-3 for Lamp Caps and Lampholders:



No.: Category Name Standard Figure
1 E14 Lamp Cap E14 Lam Cap “Go” Gauge 7006-27F-1
2 E14 Lamp Cap “Not Go” Gauge 7006-28B-1
3 E14 Lamp Cap Prevent Accidental Contact Gauge 7006-55-2
4 E14S1 Lamp Cap “Go” Gauge 7006-27G-1
5 E14 Lamp Cap Contacting Making Gauge 7006-54-2
6 E14 Lamp Cap Torque Test Gauge IEC60968Fig2
7 E27 Lamp Cap E27 Lam Cap “Go” Gauge 7006-27B-1
8 E27 Lamp Cap“Not Go” Gauge 7006-28A-1
9 E27S1 Lamp Cap “Go” Gauge 7006-27C-1
10 E27 Lamp Cap Contacting Making Gauge 7006-50-1
11 E27 Lamp Cap Prevent Accidental Contact Gauge 7006-51A-2
12 E27 Lamp Cap Prevent accidental contact gauge 51*39 7006-51-2
13 E27 Lamp Cap Torque Test Gauge IEC60968Fig2
14 B15 Lamp Cap B15 Lamp Cap Insertion Gauge 7006-4A-2
15 B15 Lamp Cap Retention Gauge 7006-4B-1
16 B15 Lamp Cap “Not Go” Gauge 7006-10-8
17 B15 Lamp Cap “Go” Gauge 7006-11-8
18 B15 Lamp Cap Torque Test Gauge IEC60968Fig3
19 B22d Lamp Cap B22 Lamp Cap Insertion Gauge 7006-4A-2
20 B22 Lamp Cap Retention Gauge 7006-4B-1
23 B22 Lamp Cap “Go” Gauge 7006-10-8
24 B22 Lamp Cap “Not Go” Gauge 7006-11-8
25 B22D Lamp Cap Acceptance Gauge 7006-3-1
26 BY22d Lamp Cap “Go” Gauge 7006-17A-1
27 B22 Lamp Cap Torque Test Gauge IEC60968Fig3
28 GZ10 Lamp Cap “Go” / “Not Go” Gauge 7006-120-1
29 GZ10 Lamp Holder “Go” / “Not Go” Gauge 7006-120A-1
30 GU10 Lamp Holder “Go” / “Not Go” Gauge 7006-121A-1
31 GU10 Lamp Cap GU10 Lamp Cap “Go” / “Not Go” Gauge 7006-121-1
32 E26 Lamp Cap E26 Lamp Cap “Go” Gauge 7006-27D-3
33 E26 Lamp Cap “Not Go” Gauge 7006-29L-4
34 E26d Lamp Cap Prevent Accidental Contact Gauge 7006-29A-2
35 E26 Lamp Cap Contacting Making Gauge 7006-29-3
36 E26d Lamp Cap Reference Diameter 23mm “Go” Gauge 7006-29B-2
37 E26d Lamp Cap Reference Diameter 13.2mm “Go” Gauge 7006-29C-2
38 E26d Lamp Cap Reference Diameter 10.4mm “Go” Gauge 7006-29D-1
39 E26 Lamp Cap   7006-27E-1
40 E14 Lamp Holder “Go” Gauge 7006-25-7
41 “Not Go” Gauge 7006-26-4
42 Contacting Making Gauge 7006-30-2
43 Candle Lamp Contacting Making Gauge 7006-30A-1
43 Prevent Accidental Contact Gauge 7006-31-4
44 Torque Test Cap IEC 60238 Figure5
45 Test Cap "A" IEC 60238 Figure13
46 Test Cap "b" IEC 60238 Figure13
47 E27 Lamp Holder “Go” Gauge 7006-25A-2
48 “Not Go” Gauge 7006-26-4
49 Prevent Accidental Contact Gauge 7006-22A-4
50 Anti-bulb Neck Damage and Contacting Making Gauge 7006-21-5
51 Inside Shrapnel Resilience Gauge 7006-22D-1
52 Side Contacts Edge Gauge 7006-22B-1
53 Side Contacts Resilience Gauge 7006-22C-1
54 Torque Test Cap IEC 60238 Figure5
55 Aging test cap IEC 60238 Figure14
56 E40 Lamp Cap “Go” Gauge 7006-27-7
57 “Not Go” Gauge 7006-28D-1
58 Prevent Accidental Contact Gauge 7006-53-1
59 Contacting Making Gauge 7006-52-1
60

B22 Lamp Holder















Plug Gauge 7006-12-8
61 Gauge for checking contact position and contact force in (90°-130°) 7006-15-7
62 Gauge for checking contact position and contact force(90°-130°) 7006-20-4
63 Supplementary “Go” Gauge 7006-12A-2
64 “Not Go”/ Retention Gauge 7006-12B-2
65 Gauge for checking contact position and contact force 7006-15A-2
66 Gauge for the slots in lampholders 7006-13-5
67 Plug Gauge 7006-17B-1
68

E12 Lamp Cap







“Go” Gauge 7006-27H-1
69 “Not Go” Gauge 7006-28C-1
70 Supplementary “Go” Gauge 7006-27J-1
71 Contacting Making Gauge 7006-32-1
72

E17 Lamp Cap





“Go” Gauge 7006-27K-1
73 “Not Go” Gauge 7006-28F-1
74 Contacting Making Gauge 7006-26D-1
75

E39 Lamp Cap





“Go” Gauge 7006-24B-1
76 “Not Go” Gauge 7006-24C-1
77 Contacting Making Gauge 7006-24A-1
78 E40 Lamp Holder “Go” Gauge 7006-25-7
79 “Not Go” Gauge 7006-26-4
80 Prevent Accidental Contact Gauge 7006-24-3
81 Contacting Making Gauge 7006-23-3
82 1EP10 Lamp Cap  “Not Go” Gauge 7006-28-7
83 2EP10 Lamp Cap  “Go” Gauge 7006-37-1
84 3EY10 Lamp Cap  “Go” Gauge 7006-7-1
85 4E10 Lamp Cap  “Go” Gauge 7006-27A-2
86

G5 Lamp Cap



“Go” and “Not Go” Gauge for Unfinished Bi-pin Cap 7006-46-3
87 “Go” Gauge for Bi-pin Cap on Finished Lamps 7006-46A-3
88

G13 Lamp Cap



“Go” and “Not Go” Gauge for Unfinished Bi-pin Cap 7006-44-4
89 “Go” Gauge for Bi-pin Cap on Finished Lamps 7006-45-4
90

G5 Lamp Holder





Contacting Making Plug Gauge for Finished Lamps 7006-47A-2
91 Double Ended Gauge 7006-47B-3 III IV V
92 Double Ended “Go” Gauge 7006-47B-3 I II
93

G13 Lamp Holder



Double Ended Gauge 7006-60B-4 III IV V
94 Double Ended “Go” Gauge 7006-60C-3 I II
95

GU5.3 Lamp Holder





“Go” Gauge 7006-73A-1
96 Gauge A 7006-73A-2
97 Gauge B 7006-126B-1
98

G9 Lamp Cap



“Go” Gauge 7006-129-1
99 “Not Go” Gauge 7006-129A-1
100 G5.3 Lamp Cap  Gauge for Bi-pin Cap G5.3 on Finished Lamps 7006-73-1
101  GU5.3 “Go” and “Not Go” Gauge for Bi-pin Base 7006-109-1
102  GX5.3 “Go” and “Not Go” Gauge for Bi-pin Base 7006-73B-2
103  GY5.3 “Go” and “Not Go” Gauge for Bi-pin Base 7006-73C-2
104  2G10 “Go” Gauge for Caps on Finished Lamps 7006-118-1
105

 GX10q















“Go” Gauge for Caps on Finished Lamps 7006-84-2
106 “Not Go” Gauge A for Caps on Finished Lamps 7006-84A-1
107 “Not Go” Gauge B for Caps on Finished Lamps 7006-84B-1
108 “Go” Gauges for Keys on Finished Lamps 7006-84E-1
109 “Not Go” Gauges for Caps on Finished Lamps 7006-84F-1
110

GY10q



“Go” Gauge for Caps on Finished Lamps 7006-85-2
111 “Not Go” Gauge A for Caps on Finished Lamps 7006-85A-1
112 “Go” Gauges for Keys on Finished Lamps 7006-85D-1
113 “Not Go” Gauges for Caps on Finished Lamps 7006-85E-1
114 G10q, GY10q “Go” Gauge 7006-79-2
115 G12 “Go” Gauge for Caps on Finished Lamps 7006-80-1
116 PG12,PGX12 Lamp Cap “Go” Gauge 7006-81-3
117  Fc2 Lamp Cap “Go” Gauge 7006-114-1
118  GR8 “Go” Gauge for Caps on Finished Lamps 7006-68-2
119  GR8 Gauge for caps to ensure entry of maximum lampholders and to check pin-spacing and length 7006-68A-2
120  GR8,GR10q “Go” Gauge for checking the pins of caps on finished lamps 7006-68E-1
121  GR8,GR10q “Go” and “Not Go” Gauge for checking the pins of caps 7006-68F-1
122  2G13 Lamp Cap “Go” Gauge 7006-33-2
123  2G72GX7 Lamp Cap “Go” and “Not Go” Gauge 7006-102-1
124  G23 Lamp Cap “Go” and “Not Go” Gauge 7006-69-2
125  GX23 Lamp Cap “Go” and “Not Go” Gauge 7006-86-1
126  G24GX24 Lamp Cap “Go” and “Not Go” Gauge 7006-78-3
127  GX32 Lamp Cap “Go” and “Not Go” Gauge 7006-87-2
128  G4 “Go” and “Not Go” Gauge for Bi-pin Lamp Bases 7006-72-1 A B
129  GU4 “Go” and “Not Go” Gauge for Bi-pin Lamp Bases 7006-108-2
130  GZ4 “Go” and “Not Go” Gauge for Bi-pin Lamp Bases 7006-67-1
131  G6.35GX6.35GY6.35GZ6.35 “Go” and “Not Go” Gauge for Bi-pin Bases 7006-61-5
132  G6.35GX6.35GY6.35 “Go” Gauge for Bi-pin Bases 7006-61A-3
133  GZ6.35 “Go” Gauge for Bi-pin Bases 7006-59B-1
134  GU7 “Go” and “Not Go” Gauge for Bi-pin Bases 7006-113-2
135  R17d “Go” and “Not Go” Gauge 7006-57-3
136  Fa6 “Go” and “Not Go” Gauge 7006-41-2
137  Fa8 “Go” Gauge 7006-40-1
138  Fa8 “Not Go” Gauge 7006-40A-1
139  2G11 “Go” Gauge 7006-82-1
140  B15 Lamp Holder “Go” Gauge 7006-12D-2
141

 B15d Lamp Holder





“Not Go” Gauge 7006-12C-2
142 Gauge for checking contact position and contact force in bayonet lampholders 7006-15B-1
143 Gauges for the slots in the lampholders 7006-13-5
144

 E17 Lamp Holder





“Go” Gauge 7006-25H-1
145 “Not Go” Gauge 7006-26C-1
146 Gauges for testing contact-making in lampholers 7006-26E-1
147  E26 “Go” Gauge 7006-25B-2
148  E26&E26d “Not Go” Gauge 7006-26A-2
149  E26d Plug gauge for testing protection against accidental contact in E26d lampholder 7006-29J-1
150

G6.35 Lamp Holder



Min. Retention Gauge 7006-61C-4
151 “Go” Gauge 7006-61B-4
152

 G12 Lamp Holder









“Go” Gauge A 7006-80A-2
153 “Go” Gauge B 7006-80B-2
154 “Go” Gauge C 7006-80C-2
155 “Go” Gauge D 7006-80D-3
156 “Go” Gauge E 7006-80E-3
157  R7S Gauges for testing contact-making 7006-62-4
158  G5.3 Lamp Holder “Go” Gauge 7006-73A-1
159

 GX53 Lamp Holder









“Go” Gauge A 7006-142A-1
160 “Go” Gauge B 7006-142B-1
161 “Go” Gauge C 7006-142C-1
162 “Go” and “Not Go” Gauge 7006-142G-1
163 “Not Go” Gauge 7006-142H-1
164  R7S Lamp Holder “Go” Gauge 7006-62-1
165  GX5 Lamp Holder “Not Go” Gauge 7006-142J-1
166 E5 Lamp Holder “Go” Gauge 7006-25F-1
167 “Not Go” Gauge 7006-25G-1
168 E10 Lamp Holder “Go” Gauge 7006-25-7
169 EP10 Lamp Holder “Go” Gauge 7006-37A-1
170 E10 Lamp Holder “Not Go” Gauge 7006-26-4
171 EY10 Lamp Holder “Not Go” Gauge 7006-26-4
172 EP10 Lamp Holder “Not Go” Gauge 7006-26-4
173 EY10 Lamp Holder “Go” Gauge 7006-7A-1
174 E11 Lamp Holder Gauges A for testing contact-making 7006-6A-1
175 Gauges B for testing contact-making 7006-6B-1
176 E12 Lamp Holder “Go” Gauge 7006-25C-1
177 “Not Go” Gauge 7006-26B-1
178 Contact-making 7006-32A-1
179 E17 Lamp Holder “Go” Gauge 7006-25H-1
180 “Not Go” Gauge 7006-26C-1
181 Gauges for testing contact-making 7006-26E-1
182 E26 Lamp Holder “Go” Gauge 7006-25B-2
183 “Not Go” Gauge 7006-26A-2
184 E26d Lamp Holder “Not Go” Gauge 7006-26A-2
185 E26 Lamp Holder Gauges for testing contact-making 7006-25J-1
186

E26d Lamp Holder



“Go” Gauge 7006-29K-1
187 Gauges for testing contact-making 7006-29G-3
188 Gauge for checking the radial position of the intermediate contact of lampholder 7006-29E-1
189 Gauge for testing the relative positions of the contacts in lampholder 7006-29F-1
190 Gauge for testing contact-making in metal-shell paper-lined lampholders 7006-29H-3
191 Plug gauge for testing protection against accidental contact 7006-29J-1
192 Gauge for testing unacceptable contact-making in lampholders 7006-29M-1
193 E39 Lamp Holder “Go” Gauge 7006-24E-1
194 “Not Go” Gauge 7006-26-4
195 Gauges for testing contact-making 7006-24D-1
196 Gauge for testing maximum insertion torque in lampholders with shell-grip features 7006-24F-1
197 Gauge for testing minimum insertion torque in lampholders with shell-grip features 7006-24G-1
198 E40 Lamp Holder “Go” Gauge 7006-25-7
199 “Not Go” Gauge 7006-26-4
200 Gauges for testing contact-making 7006-23-3
201 Plug gauge for lampholders for testing protection against accidental contact 7006-24-3
202 Torque Test Cap IEC 60238 Figure5
203 GX53 Lamp Cap “Go” and “Not Go” Gauge 7006-142-1
204 “Not Go” Gauge 7006-142D-1
205 “Go” and “Not Go” Gauge for checking keyways in caps 7006-142E-1
206 “Not Go” Gauge for checking keyways in caps 7006-142F-1

Sinuo can supply grand range of gauges, including lamp gauges, plug and socket-outlet gauges, etc. Our gauges are made of high quality die steel, anti-corrosion, wear-resistant and high accuracy, which can ensure our gauges pass the third party calibration.

IEC 60061-3 B22d Lamp Caps And Lampholders Go And No Go Gauges 0


products
PRODUCTS DETAILS
IEC 60061-3 B22d Lamp Caps And Lampholders Go And No Go Gauges
MOQ: 1
Price: Negotiable
Standard Packaging: Plastic Case
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN991-B22
Applied Standard:
IEC 60061-3
Gauge Type:
Go And No Go Gauges
Material:
Die Steel
Test Specimen:
B22 Lamp Caps And Lampholders
Structure:
Refer To The Specific Figures
Application:
Control Of Interchangeability And Safety
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plastic Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100 sets per month
High Light

B22d Lamp Caps

,

IEC 60061-3 Lamp Caps

,

Die steel B22d Lampholders

Product Description



IEC 60061-3 B22d Lamp Caps and Lampholders Go and No Go Gauges



Product Overview:



These lamp gauges are made of Japan DC53 material, Rockwell hardness 58-60 °, and they meets the requirements of IEC 60061-3:2015 “Lamp caps and holers together with gauges for the control of interchangeability and safety –Part 3:Gauges,MOD”.



B22d Go gauge for lamp cap (7006-10-8)

Purpose: To test the size Amax, Nmin, D1min and D1max of the B22d lamp cap on the finished lamp and the radial position of the pin

How to use:

a) Insert the lamp cap into the gauge until its pin passes through the slot Q.

b) Then turn the lamp cap to a slight angle and press it so that the pin is in close contact with the S surface.

c) The contact surface at this position should not be lower than the X surface, nor should it protrude from the Z surface.



B22d No Go gauge for lamp cap (7006-11-8)

Purpose: To inspect the size Amin of the B22d lamp cap on the finished lamp separately

How to use: If the gauge cannot fit into the lamp cap of the finished lamp only by its own weight, the lamp cap shall be deemed qualified



Sinuo Guages List as per IEC 60061-3 for Lamp Caps and Lampholders:



No.: Category Name Standard Figure
1 E14 Lamp Cap E14 Lam Cap “Go” Gauge 7006-27F-1
2 E14 Lamp Cap “Not Go” Gauge 7006-28B-1
3 E14 Lamp Cap Prevent Accidental Contact Gauge 7006-55-2
4 E14S1 Lamp Cap “Go” Gauge 7006-27G-1
5 E14 Lamp Cap Contacting Making Gauge 7006-54-2
6 E14 Lamp Cap Torque Test Gauge IEC60968Fig2
7 E27 Lamp Cap E27 Lam Cap “Go” Gauge 7006-27B-1
8 E27 Lamp Cap“Not Go” Gauge 7006-28A-1
9 E27S1 Lamp Cap “Go” Gauge 7006-27C-1
10 E27 Lamp Cap Contacting Making Gauge 7006-50-1
11 E27 Lamp Cap Prevent Accidental Contact Gauge 7006-51A-2
12 E27 Lamp Cap Prevent accidental contact gauge 51*39 7006-51-2
13 E27 Lamp Cap Torque Test Gauge IEC60968Fig2
14 B15 Lamp Cap B15 Lamp Cap Insertion Gauge 7006-4A-2
15 B15 Lamp Cap Retention Gauge 7006-4B-1
16 B15 Lamp Cap “Not Go” Gauge 7006-10-8
17 B15 Lamp Cap “Go” Gauge 7006-11-8
18 B15 Lamp Cap Torque Test Gauge IEC60968Fig3
19 B22d Lamp Cap B22 Lamp Cap Insertion Gauge 7006-4A-2
20 B22 Lamp Cap Retention Gauge 7006-4B-1
23 B22 Lamp Cap “Go” Gauge 7006-10-8
24 B22 Lamp Cap “Not Go” Gauge 7006-11-8
25 B22D Lamp Cap Acceptance Gauge 7006-3-1
26 BY22d Lamp Cap “Go” Gauge 7006-17A-1
27 B22 Lamp Cap Torque Test Gauge IEC60968Fig3
28 GZ10 Lamp Cap “Go” / “Not Go” Gauge 7006-120-1
29 GZ10 Lamp Holder “Go” / “Not Go” Gauge 7006-120A-1
30 GU10 Lamp Holder “Go” / “Not Go” Gauge 7006-121A-1
31 GU10 Lamp Cap GU10 Lamp Cap “Go” / “Not Go” Gauge 7006-121-1
32 E26 Lamp Cap E26 Lamp Cap “Go” Gauge 7006-27D-3
33 E26 Lamp Cap “Not Go” Gauge 7006-29L-4
34 E26d Lamp Cap Prevent Accidental Contact Gauge 7006-29A-2
35 E26 Lamp Cap Contacting Making Gauge 7006-29-3
36 E26d Lamp Cap Reference Diameter 23mm “Go” Gauge 7006-29B-2
37 E26d Lamp Cap Reference Diameter 13.2mm “Go” Gauge 7006-29C-2
38 E26d Lamp Cap Reference Diameter 10.4mm “Go” Gauge 7006-29D-1
39 E26 Lamp Cap   7006-27E-1
40 E14 Lamp Holder “Go” Gauge 7006-25-7
41 “Not Go” Gauge 7006-26-4
42 Contacting Making Gauge 7006-30-2
43 Candle Lamp Contacting Making Gauge 7006-30A-1
43 Prevent Accidental Contact Gauge 7006-31-4
44 Torque Test Cap IEC 60238 Figure5
45 Test Cap "A" IEC 60238 Figure13
46 Test Cap "b" IEC 60238 Figure13
47 E27 Lamp Holder “Go” Gauge 7006-25A-2
48 “Not Go” Gauge 7006-26-4
49 Prevent Accidental Contact Gauge 7006-22A-4
50 Anti-bulb Neck Damage and Contacting Making Gauge 7006-21-5
51 Inside Shrapnel Resilience Gauge 7006-22D-1
52 Side Contacts Edge Gauge 7006-22B-1
53 Side Contacts Resilience Gauge 7006-22C-1
54 Torque Test Cap IEC 60238 Figure5
55 Aging test cap IEC 60238 Figure14
56 E40 Lamp Cap “Go” Gauge 7006-27-7
57 “Not Go” Gauge 7006-28D-1
58 Prevent Accidental Contact Gauge 7006-53-1
59 Contacting Making Gauge 7006-52-1
60

B22 Lamp Holder















Plug Gauge 7006-12-8
61 Gauge for checking contact position and contact force in (90°-130°) 7006-15-7
62 Gauge for checking contact position and contact force(90°-130°) 7006-20-4
63 Supplementary “Go” Gauge 7006-12A-2
64 “Not Go”/ Retention Gauge 7006-12B-2
65 Gauge for checking contact position and contact force 7006-15A-2
66 Gauge for the slots in lampholders 7006-13-5
67 Plug Gauge 7006-17B-1
68

E12 Lamp Cap







“Go” Gauge 7006-27H-1
69 “Not Go” Gauge 7006-28C-1
70 Supplementary “Go” Gauge 7006-27J-1
71 Contacting Making Gauge 7006-32-1
72

E17 Lamp Cap





“Go” Gauge 7006-27K-1
73 “Not Go” Gauge 7006-28F-1
74 Contacting Making Gauge 7006-26D-1
75

E39 Lamp Cap





“Go” Gauge 7006-24B-1
76 “Not Go” Gauge 7006-24C-1
77 Contacting Making Gauge 7006-24A-1
78 E40 Lamp Holder “Go” Gauge 7006-25-7
79 “Not Go” Gauge 7006-26-4
80 Prevent Accidental Contact Gauge 7006-24-3
81 Contacting Making Gauge 7006-23-3
82 1EP10 Lamp Cap  “Not Go” Gauge 7006-28-7
83 2EP10 Lamp Cap  “Go” Gauge 7006-37-1
84 3EY10 Lamp Cap  “Go” Gauge 7006-7-1
85 4E10 Lamp Cap  “Go” Gauge 7006-27A-2
86

G5 Lamp Cap



“Go” and “Not Go” Gauge for Unfinished Bi-pin Cap 7006-46-3
87 “Go” Gauge for Bi-pin Cap on Finished Lamps 7006-46A-3
88

G13 Lamp Cap



“Go” and “Not Go” Gauge for Unfinished Bi-pin Cap 7006-44-4
89 “Go” Gauge for Bi-pin Cap on Finished Lamps 7006-45-4
90

G5 Lamp Holder





Contacting Making Plug Gauge for Finished Lamps 7006-47A-2
91 Double Ended Gauge 7006-47B-3 III IV V
92 Double Ended “Go” Gauge 7006-47B-3 I II
93

G13 Lamp Holder



Double Ended Gauge 7006-60B-4 III IV V
94 Double Ended “Go” Gauge 7006-60C-3 I II
95

GU5.3 Lamp Holder





“Go” Gauge 7006-73A-1
96 Gauge A 7006-73A-2
97 Gauge B 7006-126B-1
98

G9 Lamp Cap



“Go” Gauge 7006-129-1
99 “Not Go” Gauge 7006-129A-1
100 G5.3 Lamp Cap  Gauge for Bi-pin Cap G5.3 on Finished Lamps 7006-73-1
101  GU5.3 “Go” and “Not Go” Gauge for Bi-pin Base 7006-109-1
102  GX5.3 “Go” and “Not Go” Gauge for Bi-pin Base 7006-73B-2
103  GY5.3 “Go” and “Not Go” Gauge for Bi-pin Base 7006-73C-2
104  2G10 “Go” Gauge for Caps on Finished Lamps 7006-118-1
105

 GX10q















“Go” Gauge for Caps on Finished Lamps 7006-84-2
106 “Not Go” Gauge A for Caps on Finished Lamps 7006-84A-1
107 “Not Go” Gauge B for Caps on Finished Lamps 7006-84B-1
108 “Go” Gauges for Keys on Finished Lamps 7006-84E-1
109 “Not Go” Gauges for Caps on Finished Lamps 7006-84F-1
110

GY10q



“Go” Gauge for Caps on Finished Lamps 7006-85-2
111 “Not Go” Gauge A for Caps on Finished Lamps 7006-85A-1
112 “Go” Gauges for Keys on Finished Lamps 7006-85D-1
113 “Not Go” Gauges for Caps on Finished Lamps 7006-85E-1
114 G10q, GY10q “Go” Gauge 7006-79-2
115 G12 “Go” Gauge for Caps on Finished Lamps 7006-80-1
116 PG12,PGX12 Lamp Cap “Go” Gauge 7006-81-3
117  Fc2 Lamp Cap “Go” Gauge 7006-114-1
118  GR8 “Go” Gauge for Caps on Finished Lamps 7006-68-2
119  GR8 Gauge for caps to ensure entry of maximum lampholders and to check pin-spacing and length 7006-68A-2
120  GR8,GR10q “Go” Gauge for checking the pins of caps on finished lamps 7006-68E-1
121  GR8,GR10q “Go” and “Not Go” Gauge for checking the pins of caps 7006-68F-1
122  2G13 Lamp Cap “Go” Gauge 7006-33-2
123  2G72GX7 Lamp Cap “Go” and “Not Go” Gauge 7006-102-1
124  G23 Lamp Cap “Go” and “Not Go” Gauge 7006-69-2
125  GX23 Lamp Cap “Go” and “Not Go” Gauge 7006-86-1
126  G24GX24 Lamp Cap “Go” and “Not Go” Gauge 7006-78-3
127  GX32 Lamp Cap “Go” and “Not Go” Gauge 7006-87-2
128  G4 “Go” and “Not Go” Gauge for Bi-pin Lamp Bases 7006-72-1 A B
129  GU4 “Go” and “Not Go” Gauge for Bi-pin Lamp Bases 7006-108-2
130  GZ4 “Go” and “Not Go” Gauge for Bi-pin Lamp Bases 7006-67-1
131  G6.35GX6.35GY6.35GZ6.35 “Go” and “Not Go” Gauge for Bi-pin Bases 7006-61-5
132  G6.35GX6.35GY6.35 “Go” Gauge for Bi-pin Bases 7006-61A-3
133  GZ6.35 “Go” Gauge for Bi-pin Bases 7006-59B-1
134  GU7 “Go” and “Not Go” Gauge for Bi-pin Bases 7006-113-2
135  R17d “Go” and “Not Go” Gauge 7006-57-3
136  Fa6 “Go” and “Not Go” Gauge 7006-41-2
137  Fa8 “Go” Gauge 7006-40-1
138  Fa8 “Not Go” Gauge 7006-40A-1
139  2G11 “Go” Gauge 7006-82-1
140  B15 Lamp Holder “Go” Gauge 7006-12D-2
141

 B15d Lamp Holder





“Not Go” Gauge 7006-12C-2
142 Gauge for checking contact position and contact force in bayonet lampholders 7006-15B-1
143 Gauges for the slots in the lampholders 7006-13-5
144

 E17 Lamp Holder





“Go” Gauge 7006-25H-1
145 “Not Go” Gauge 7006-26C-1
146 Gauges for testing contact-making in lampholers 7006-26E-1
147  E26 “Go” Gauge 7006-25B-2
148  E26&E26d “Not Go” Gauge 7006-26A-2
149  E26d Plug gauge for testing protection against accidental contact in E26d lampholder 7006-29J-1
150

G6.35 Lamp Holder



Min. Retention Gauge 7006-61C-4
151 “Go” Gauge 7006-61B-4
152

 G12 Lamp Holder









“Go” Gauge A 7006-80A-2
153 “Go” Gauge B 7006-80B-2
154 “Go” Gauge C 7006-80C-2
155 “Go” Gauge D 7006-80D-3
156 “Go” Gauge E 7006-80E-3
157  R7S Gauges for testing contact-making 7006-62-4
158  G5.3 Lamp Holder “Go” Gauge 7006-73A-1
159

 GX53 Lamp Holder









“Go” Gauge A 7006-142A-1
160 “Go” Gauge B 7006-142B-1
161 “Go” Gauge C 7006-142C-1
162 “Go” and “Not Go” Gauge 7006-142G-1
163 “Not Go” Gauge 7006-142H-1
164  R7S Lamp Holder “Go” Gauge 7006-62-1
165  GX5 Lamp Holder “Not Go” Gauge 7006-142J-1
166 E5 Lamp Holder “Go” Gauge 7006-25F-1
167 “Not Go” Gauge 7006-25G-1
168 E10 Lamp Holder “Go” Gauge 7006-25-7
169 EP10 Lamp Holder “Go” Gauge 7006-37A-1
170 E10 Lamp Holder “Not Go” Gauge 7006-26-4
171 EY10 Lamp Holder “Not Go” Gauge 7006-26-4
172 EP10 Lamp Holder “Not Go” Gauge 7006-26-4
173 EY10 Lamp Holder “Go” Gauge 7006-7A-1
174 E11 Lamp Holder Gauges A for testing contact-making 7006-6A-1
175 Gauges B for testing contact-making 7006-6B-1
176 E12 Lamp Holder “Go” Gauge 7006-25C-1
177 “Not Go” Gauge 7006-26B-1
178 Contact-making 7006-32A-1
179 E17 Lamp Holder “Go” Gauge 7006-25H-1
180 “Not Go” Gauge 7006-26C-1
181 Gauges for testing contact-making 7006-26E-1
182 E26 Lamp Holder “Go” Gauge 7006-25B-2
183 “Not Go” Gauge 7006-26A-2
184 E26d Lamp Holder “Not Go” Gauge 7006-26A-2
185 E26 Lamp Holder Gauges for testing contact-making 7006-25J-1
186

E26d Lamp Holder



“Go” Gauge 7006-29K-1
187 Gauges for testing contact-making 7006-29G-3
188 Gauge for checking the radial position of the intermediate contact of lampholder 7006-29E-1
189 Gauge for testing the relative positions of the contacts in lampholder 7006-29F-1
190 Gauge for testing contact-making in metal-shell paper-lined lampholders 7006-29H-3
191 Plug gauge for testing protection against accidental contact 7006-29J-1
192 Gauge for testing unacceptable contact-making in lampholders 7006-29M-1
193 E39 Lamp Holder “Go” Gauge 7006-24E-1
194 “Not Go” Gauge 7006-26-4
195 Gauges for testing contact-making 7006-24D-1
196 Gauge for testing maximum insertion torque in lampholders with shell-grip features 7006-24F-1
197 Gauge for testing minimum insertion torque in lampholders with shell-grip features 7006-24G-1
198 E40 Lamp Holder “Go” Gauge 7006-25-7
199 “Not Go” Gauge 7006-26-4
200 Gauges for testing contact-making 7006-23-3
201 Plug gauge for lampholders for testing protection against accidental contact 7006-24-3
202 Torque Test Cap IEC 60238 Figure5
203 GX53 Lamp Cap “Go” and “Not Go” Gauge 7006-142-1
204 “Not Go” Gauge 7006-142D-1
205 “Go” and “Not Go” Gauge for checking keyways in caps 7006-142E-1
206 “Not Go” Gauge for checking keyways in caps 7006-142F-1

Sinuo can supply grand range of gauges, including lamp gauges, plug and socket-outlet gauges, etc. Our gauges are made of high quality die steel, anti-corrosion, wear-resistant and high accuracy, which can ensure our gauges pass the third party calibration.

IEC 60061-3 B22d Lamp Caps And Lampholders Go And No Go Gauges 0


Sitemap |  Privacy Policy | China Good Quality Electrical Appliance Testing Equipment Supplier. Copyright © 2019-2024 sinuotek.com . All Rights Reserved.
