| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Aluminium Box |
| Delivery Period: | 3 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100 sets per month |

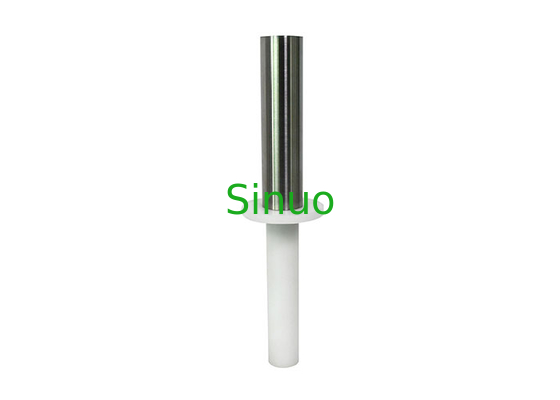

IEC 61032 Figure 15 Test Probe 32
Product Overview:
This probe conforms to the standard requirements of IEC 61032 test probe 32 figure 15, etc. This rod is intended to verify the protection provided by fan guards against access to hazardous mechanical parts.
Probe Dimension:
| Probe diameter (mm) | Ф25±0.1 |
| Probe length (mm) | 80±0.2 |
| Probe material | Stainless steel |
| Handle material | Nylon |
Please refer to the relevant standards.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:
Please do not damage the appliance shape (such as scratching, bending, etc.).
Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
