IEC 61032 Figure 14 Test Probe 31 for Testing Food Waste Disposal Units

IEC 61032 Figure 14 Test Probe 31 for Testing Food Waste Disposal Units

MOQ: 1
Price: Negotiable
Standard Packaging: Aluminium Box
Delivery Period: 3 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-14
Applied Standard:
IEC 61032
Applied Figure:
Figure 14
Probe Part Diameter:
Ф25mm±0.2mm
Probe Part Length:
80mm±0.2mm
Probe Material:
Stainless Steel
Cone Part Material:
Nylon
Cone Part Tip Diameter:
Ф60mm±0.2mm
Cone Part End Diameter:
Ф110mm±0.2mm
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Aluminium Box
Delivery Time:
3 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100 sets per month
High Light:

Figure 14 Test Probe 31

,

IEC 61032 Test Probe 31

Product Description

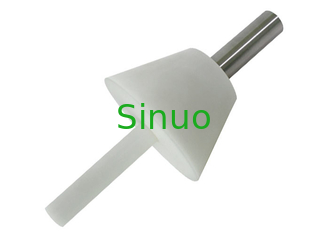

IEC 61032 Figure 14 Test Probe 31


Product Overview:

This probe conforms to the standard requirements of IEC 61032 test probe 31 figure 14, etc. This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.



Probe Dimension:

Probe diameter (mm) Ф25±0.2
The length of the metal probe (mm) 80±0.2
Tip diameter of the cone (mm) Ф60±0.2
End diameter of the cone (mm) Ф110±0.2
Total length of probe and cone (mm) 150±0.2
Probe material Stainless steel
Cone and handle material Nylon



Operation:

Please refer to the relevant standards.

The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:

IEC 61032 Figure 14 Test Probe 31 for Testing Food Waste Disposal Units 0
