IEC 62368-1 Figure V.1 Stainless Steel Joint Test Probe With Nylon Handle

IEC 62368-1 Figure V.1 Stainless Steel Joint Test Probe With Nylon Handle

MOQ: 1
Price: Customized
Standard Packaging: Aluminium Box
Delivery Period: 15 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-35
Applied Standard:
IEC 62368-1:2018
Applied Clause:
Clause V.1.2
Probe Material:
Stainless Steel
Handle Material:
Nylon
Applied Force:
Should Work With Force Gauge
Package Type:
Aluminum Case
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Aluminium Box
Delivery Time:
15 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
50 sets per month
High Light:

Figure V.1 Joint Test Probe

,

IEC 62368-1 Joint Test Probe

Product Description



IEC 62368-1 Figure V.1 Stainless Steel Joint Test Probe



Product Overview:

This straight unjointed test probe meets the requirements of IEC 62368-1:2018 clause V.1.2 and figure V.1, UL474 Fig 5.1, UL507 Fig 9.2(PA100A), UL982 Fig 7.1, UL1017 Fig 2, UL1062 Fig1.2, UL1278Fig 8.3, UL1310 Fig 16.2, UL6500 Fig14, UL60065 Fig14 and UL60950 Fig NAF.1.

Test sample:Equipment likely to be accessible to children.

Feature:Nylon handle + stainless steel probe, it is manufactured according to the standard figure.

The force is achieved by working with a force gauge, there is a M6 thread hole on the handle of probe which can match a force gauge.



Technical Parameters:

Probe material Stainless steel
Handle material Nylon
Applied force Without built-in force, should work with a force gauge
Applied standards

IEC 62368-1:2018 clause V.1.2, figure V.1

IEC 62368-1 Figure V.1 Stainless Steel Joint Test Probe With Nylon Handle 0IEC 62368-1 Figure V.1 Stainless Steel Joint Test Probe With Nylon Handle 1

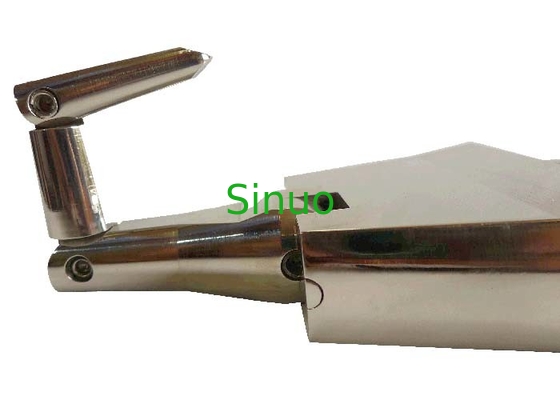

Jointed version                                        Straight unjointed version
