| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 10 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 100 sets per month |

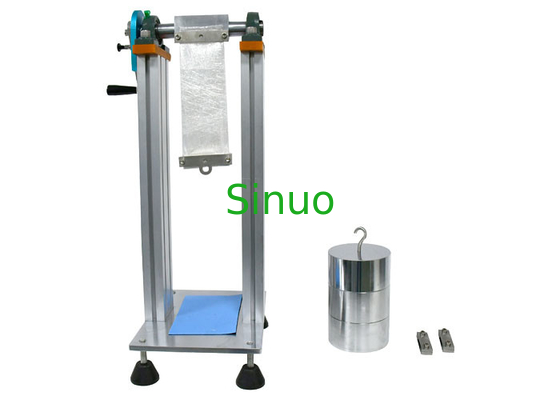

IEC 60065 Corrosion-Resistance Metal 230° Rotating Angle Mandrel Test Apparatus
Product Overview:
This test apparatus conforms to IEC60065:2014 clause 8.21, figure 14~16, IEC60558-1 Fig6, IEC 60950 and etc. It is used for tensile and electrical strength verification for non-separable thin layer materials.
This test apparatus has the mechanical limits in the position of 0o and 230o to make sure the accuracy of the testing angle.
Technical Parameters:
| Mandrel Material | Made of corrosion-resistance metal |
| Bracket Material | Aluminum profile |
| Weights | 1N*2,50N*2 (with through hole), 50N*1 (including the weight of hanging hook and clamping device for specimen) |
| Force of the two terminals of material foil | 1N (two sets of 1N weights, also the clamping device for metal foil) |
| Rotating angle of the mandrel | 230 o |
| Height of the mandrel to the bottom of the device | 500mm |
How to rotate the mandrel to 230° position:
Pull out the position locking pin, then the mandrel is rotated from 0°limit position to 230°limit position, then the position locking pin is locked. Please refer to following picture.
Video
Video
|
|
