Disposable Masks Digital Tensile Test Equipment / Mask Band Breaking Strength Tester

Disposable Masks Digital Tensile Test Equipment / Mask Band Breaking Strength Tester

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 7 Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN122605
Force Capacity:
Can Be Customized
Force Units:
N, KN, Kgf, Gf, Lbf
Intensity Units:
Pa, KPa, Mpa, Kgf/cm2, Lbf/in2
Displacement Units:
Mm, Cm, In
Load Resolution:
1/200000 Or 1/300000
Load Accuracy:
±0.5%
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood
Delivery Time:
7 Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
20 Sets Per Month
High Light:

mask testing machine

,

mask testing equipment

Product Description

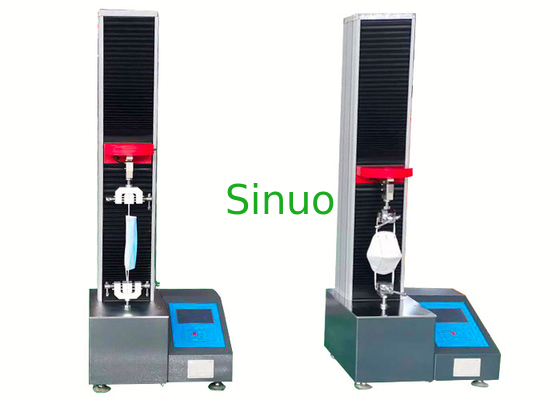

Medical Masks Digital Tensile Testing Equipment Mask Band Breaking Strength Tester



Product overview:


This mask tensile testing machine is used to carry out tensile test for medical masks, disposable masks, respiratory protective respirators, other masks, respirators, etc.



It is also suitable for testing the mechanical properties of various flexible packaging materials, such as tensile properties. It can process tensile, elongation, peeling, deformation, tearing, heat sealing, adhesion, puncture force and other performance tests of metal, rubber, plastic, spring, wood, knitted fabric, silk, film, adhesive, tape, adhesive, medical patch, protective film, combination cover, back sheet material, non-woven fabric, paper fiber, etc.





Applied standards:



CNS 11888,JIS K6854,PSTC-7,ISO 37,AS 1180.2,BS EN 1979,BS EN ISO 1421,BS EN ISO 1798,BS EN ISO 9163,DIN EN ISO 1798,GOST 18299,DIN 53357,ISO 2285,ISO 34-1,ISO 34-2,BS 903,BS 5131,DIN EN 12803,DIN EN 12995,DIN53507-A,DIN53339,ASTM D3574,ASTM D6644,ASTM D5035,ASTM D2061,ASTM D1445,ASTM D2290,ASTM D412,ASTM D3759/D3759M, etc.



Features:



1. Using LCD digital display controller working platform, all parameter settings are processed in the form of dialog box, easy to operate.

2. Display real-time force value, peak value, speed, test times.
3. Humanized design, simple operation.
4, instrument storage: 50 test results, operator can delete any one or more groups.
5. Printout: Can connect to a micro thermal printer output.
6. Unit of strength: N, kN, kgf, gf, lbf are selectable.
7, displacement unit: mm, cm, in are selectable
8. Strength unit: Pa, kPa, Mpa, kgf / cm2, lbf / in2 are selectable.
9. Protective measures: over-stroke protection, over-strength protection, over-time protection, external limit protection and many other protection methods.
10. High sensitivity, instantaneous determination of crushing and automatic shutdown
11. English visual display
12. Test, rise, fall, return speed can be set by any input, and it can be controlled accurately.
13. The test returns automatically and quickly after the test is completed, avoiding long waiting and speeding up the test efficiency.
14. Test result: The test is automatically recorded and saved without manual storage.
15. Multiple test items and multiple units are available to meet multiple test standards.
16. High accuracy: adopting high-precision S-type sensor, the maximum accuracy can reach 0.5%.
17. Built-in special calibration mode, which is convenient for third-party metrology and calibration institutions to perform calibration and certification on the instrument.
18. Taiwan TBI high-precision ball screw transmission, high efficiency, durability and high straightness.
19. High performance motor, low noise, small vibration and long service life.
20. High-quality S-type alloy steel sensor, high precision, strong resistance to external force and overload.
21. The outer box of the machine is made of A3 steel plate, electrostatic powder spraying and plastic coating.



Technical parameters:



Name Specifications
Capacity (kgf) 2 kgf,5 kgf,10 kgf,20 kgf,50 kgf,100 kgf,500 kgf are optional
Switchable force units N, kN, kgf, gf, lbf
Switchable intensity units Pa, kPa, Mpa, kgf/cm2, lbf/in2
Switchable displacement units mm, cm, in
Load resolution 1/200000 or 1/300000
Load accuracy ±0.5%
Stroke (including fixture) 800mm
Test speed 0.01-500mm/min
Speed accuracy ±1%
Displacement decomposition 0.001mm
Data sampling frequency 500HZ
Software Professional test software
Transmission mechanism Servo motor or stepper motor + Taiwan Shangyin ball screw + precision synchronous wheel
Volume (length * width * height) 500*400*1350mm
Weight (approx.) 70kg
Power supply AC220V, 50Hz or match client's local power supply requirements


Disposable Masks Digital Tensile Test Equipment / Mask Band Breaking Strength Tester 0Disposable Masks Digital Tensile Test Equipment / Mask Band Breaking Strength Tester 1

Various of sample fixtures can be customized
