±1000Pa 85±1L/ Min Medical Material Tester With Standard Test Head Model
  • name
  • name
  • name
  • name

±1000Pa 85±1L/ Min Medical Material Tester With Standard Test Head Model

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 20 Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN122603
Test Flow:
(85 ± 1) L / Min
Flow Resolution:
0.1L / Min
Pressure Range:
±1000Pa
Pressure Resolution:
0.1Pa
Allowed Error:
±1%
Data Storage:
100 Groups
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood
Delivery Time:
20 Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
10 Sets Per Month
High Light:

1000Pa Medical Material Tester

,

500W Medical Material testing equipment

Product Description

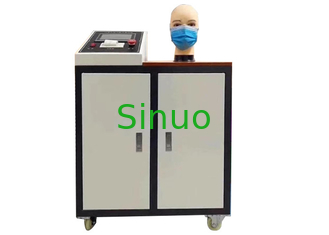

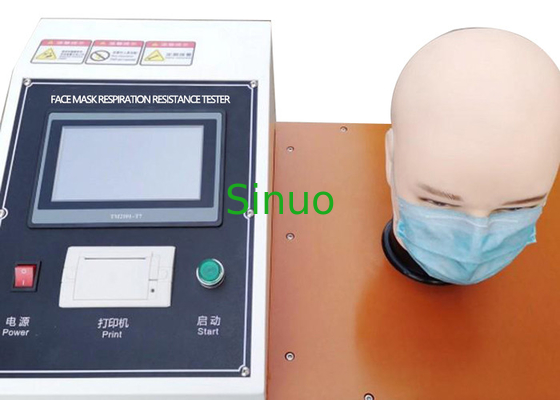

Face Mask Respiration Resistance Testing Equipment



Respiration Resistance Face Mask Tester ±1000Pa 85±1L/ Min With Standard Test Head Model



Product overview:



The mask breathing resistance detector is used to measure the inhalation and exhalation resistance of the mask under specified conditions. It is applicable to carry out relevant testing and inspection of mask products for mask manufacturers and national labor protection products inspection agencies.
Meet GB 2626-2019 Respiratory protection Self-priming filter anti-particulate respirator.



Equipment Features:


1. High-definition LCD liquid crystal display;
2. Mechanical flow meter with high flow control accuracy;
3. Automatic constant current control, automatic sample qualification judgment;
4. Can set two modes of exhalation detection and inhalation detection;
5. Large-capacity data storage, real-time storage of test data;
6. Export historical data through U disk or thermal printer;
7. Parameters such as qualified judgment pressure difference and sample number can be set;
8. Automatic protection for fault detection.

Technical parameters:

Main Parameters Range Resolution Max. Allowed Error
Test Flow (85±1)L/min 0.1L/min ±1%
Pressure Range ±1000Pa 0.1Pa ±1%
Data Storage 100 groups
Working Power Supply AC 220V±10% 50Hz or match client’s local power supply requirements
External Dimensions 420×600×720(L×W×H)
Equipment Weight Approx. 30kg
Power Approx. 500W


±1000Pa 85±1L/ Min Medical Material Tester With Standard Test Head Model 0



Test Principle
