| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Aluminium Box |
| Delivery Period: | 3~5 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 100 pcs per month |

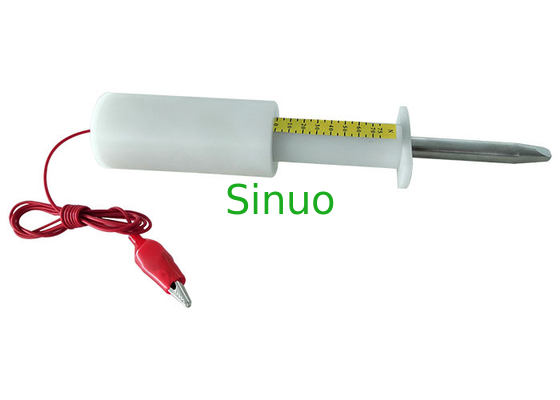

IEC 60335-1 Clause 22.11 Rigid Test Finger IEC 61032 Test Probe 11 with 0~75N Force Range
Standards & Clauses:
Conforms to IEC 60335-1 clause 22.11, IEC 60065:2014 clause 9.1.7, IEC61032 figure 7 test probe 11, etc.
Samples and Restrictions:
Non-detachable parts of household appliances, electrical accessories, lamps, etc.
Application:
It is used to check non-detachable parts that protect against access to live parts, moisture or contact with moving parts shall be fixed witha reliable manner and withstand the mechanical stress ocurring during normal use.
Test Process:
A force is applied without jerks for 10 s in the most unfavourable direction to parts likely to be weak. The force is as follows:
- pull force, 50N;
- pull force:
The push force is applied by test probe 11 of IEC 61032.
Technical parameters:
| Parameters /Model | SN2210-7T |
| Name | Rigid test finger with 75N force |
| 1 | 20 0 -0.05 |
| 2 | 80±0.2 |
| 3 | R2±0.05 |
| 4 | S4±0.05 |
| 5 | 37o 0 -10’ |
| 6 | 14 o 0 -10’ |
| 7 | Ф12 0 -0.05 |
| 8 | ---- |
| 9 | ---- |
| 10 | 0-75N force |
|
|
