PLC Control Vehicle Testing Equipment 150 kPa Automotive Rainproof Test

PLC Control Vehicle Testing Equipment 150 kPa Automotive Rainproof Test

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 60 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1101
Control:
PLC & Computer
Room Size:
Can Be Customized
Nozzle Size:
Ф2.5-Ф3mm
Water Pressure:
150±10 KPa
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
60 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
1 set per month
High Light:

automotive test equipment

,

automobile testing equipments

Product Description

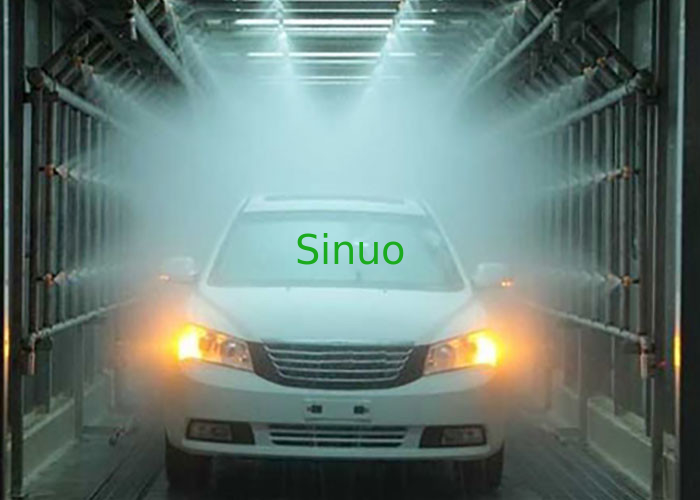

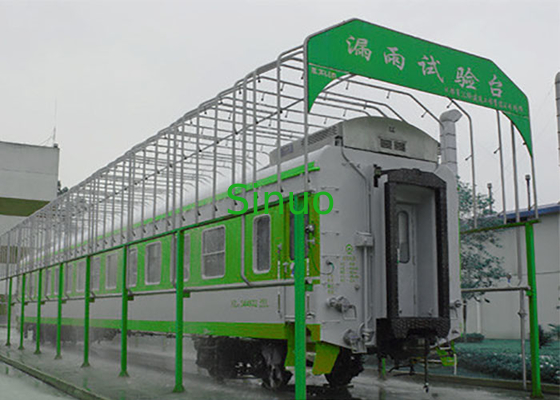

Automotive Rain Test Room Vehicles Cars Buses Trucks Rainproof Sealing Testing Chamber



Standards & Clauses:



QC/T476-2007 “Rain Proof Performance Limit and Test Method for Bus”

QC/T449—2010 “Technical Conditions and Test Methods of Insulated and Refrigerated Vehicles ” clause 4.15



Samples and Restrictions:



Insulation vehicles and refrigerated vehicles and insulated semi-trailers, refrigerated semi-trailers, passenger cars or special vehicles modified by passenger cars, vehicles with cab and enclosed carriage, cars, motorcycle parts, communication products, Household appliances, outdoor lighting and signal devices



Application:



It is used to test the rain proof performance and anti-seepage ability of the vehicles, and to check whether the vehicle window and sunroof are installed properly, whether the sealing performances are reliable, whether the installation methods are correct, to evaluate the rain proof performance of the whole vehicle.



Test Principle:



The rain area and the rain flow are controlled through the rain room, the conditions for detecting the rain are similar to the natural state outside, to confirm the water-tight state of the vehicle, and to improve the structure of the parts that may leak.



Structure:



The system consists of a rain room, a spray system, a water supply system, a water circulation system, a sewage system, an electronic control system, and movable spray plates.

Rain area: the surface of the vehicle window is sprayed under a certain rain intensity. A sewage treatment device is installed, the circulating water is sent to the sewage pool for filtration treatment, and then filtered again by the clear water tank to make it is recycled. The frame structure of the rain room is welded on site.

The reservoir and drainage system in the test room should be completed by client.



PLC Control Vehicle Testing Equipment 150 kPa Automotive Rainproof Test 0

Use Environment​:



Power supply: AC380V±5%, 50Hz, or meet with client's local power supply requirements.

Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), the ground needs to be flat, with lighting, with waterproof leakage proof switch (or socket), the water intake and drainage conditions should be good

Water source: clean water or tap water without impurities, water cleaning filter should be equipped



Technical Parameters:



Control & Operation PLC and touch screen intelligent control system, external computer operation
Rain room size structure

Inner size: WDH=6000*2400mm*3300mm

External size: WDH=7000*3800mm*4000mm

Can be customized, room materials are made of waterproof and oxidation resistant materials

Spray system parameters Spray area: front, side, rear, bottom of the vehicle body
Water spray flow: average water flow at the front of the vehicle body (12 ± 1) mm / min, average water flow of other areas (8 ± 1) mm / min, flow can be set
Nozzle size: orifice diameter Ф2.5-Ф3mm
Nozzle position: rectangular arrangement at 400*400mm spacing, bottom nozzles are 0.2m below the ground, and the distance between the remaining nozzles and the outer surface of the vehicle are 0.7±0.2m
Water supply pressure: 150±10 kPa
Spraying time: 15min after the water flow is stable, the time can be preset
Configuration Water circulation system, hydration (water storage) system and sewage system are optional
Safety protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection
