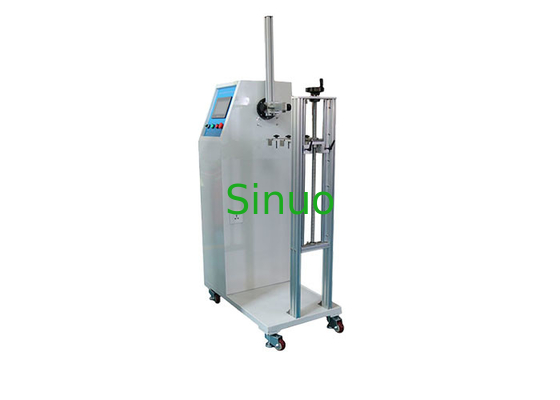

IEC 60598-1 PLC Control Led Testing Equipment Luminaries Adjusting Devices 360° Movement

IEC 60598-1 PLC Control Led Testing Equipment Luminaries Adjusting Devices 360° Movement

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN996
Test Station:
Single Station
Electrical Control:
PLC
Drive Mode:
Servo Motor
Rotation Angle:
0-360° Adjustable
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
High Light:

luminaire testing equipment

,

led light testing equipment

Product Description

IEC 60598-1 Luminaries Adjusting Devices 360° Movement PLC Control Test Apparatus



Standards & Clauses:



IEC 60598-1:2014 “Luminaries-Part1: General requirements and tests” clause 4.14.3



Samples and Restrictions:



Adjusting devices or means of adjustment, for example joints, hoisting devices, adjusting brackets or telescopic tubes.



Application:



To verify adjusting devices or means of adjustment, for example joints, hoisting devices, adjusting brackets or telescopic tubes, shall be so constructed that cords or cables are not pressed, clamped, damaged or twisted along the longitudinal axis by more than 360° during operation.



Test Principle:



Adopts the motor to drive the turntable, then simulates normal operation of lamp adjusting devices and then reset.

The adjusting devices, equipped with the appropriate cable or cord shall be operated in according with IEC 60598-1 : 2014 table 4.5. A cycle of operation is a movement from one extreme of the range to the other and back to the starting position. The rate of movement shall not cause the device to hear appreciably and shall not exceed 600 cycles per hour.

IEC 60598-1 PLC Control Led Testing Equipment Luminaries Adjusting Devices 360° Movement 0

Structure:



Divided into electrical control part and fixture part



Technical Parameters:



Test station Single station
Electrical control method PLC intelligent integrated control, 7-inch human-machine touch interface operation
Drive mode

Servo motor drive
Sample clamping method

Mechanical clamping, the clamping point position is adjustable

IEC 60598-1 PLC Control Led Testing Equipment Luminaries Adjusting Devices 360° Movement 1

Rotation angle 0-360° arbitrarily adjustable, can be rotated on one side or on both sides
Maximum radius of gyration of the pendulum R500mm
Stretching stroke 0-650mm,manual
Test speed 0-10 times / min (<600 times / h)
Test times 0~999999 presettable, a cycle of operation is a movement from one extreme of the range to the other and back to the starting position.
Load power External
