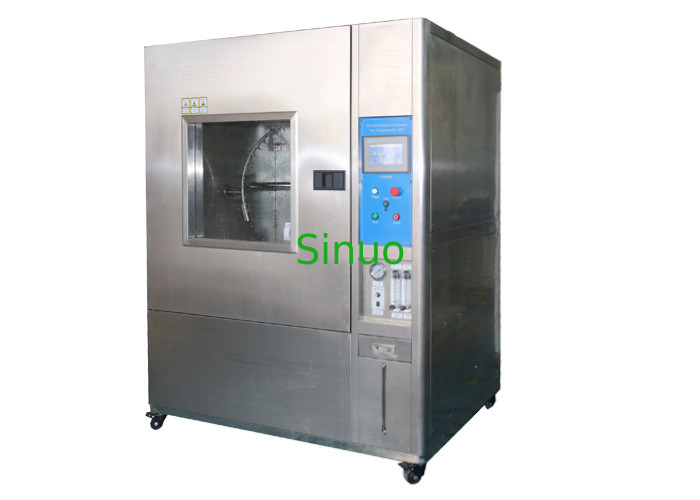

IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber

IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 10 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN445
Chamber Material:
Stainless Steel
Inner Size:
Can Be Customized
Control:
PLC+Touch Screen
IP Code:
IPX3 IPX4
Oscillating Tubes:
R200, R400 Optional
Needle Hole:
φ0.4 Mm
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
10 Sets Per Month
High Light:

rain test chamber

,

water resistant test equipment

Product Description

IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber





Overview:



Application background: Natural water (rain, sea water, river water, etc.) damages products and materials. The damage causes unpredictable economic losses every year, mainly includes corrosion, fading, deformation, strength reduction, swelling, mold, etc. especially for electrical product that is easily broken into a fire due to a short circuit caused by rain. Therefore, IP code testing for specific products or materials is an essential key procedure.



Application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.



Equipment function: The equipment is for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.



Standards compliant: IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code), test for second characterics numerial 3 and 4.

IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber 0



Equipment features:

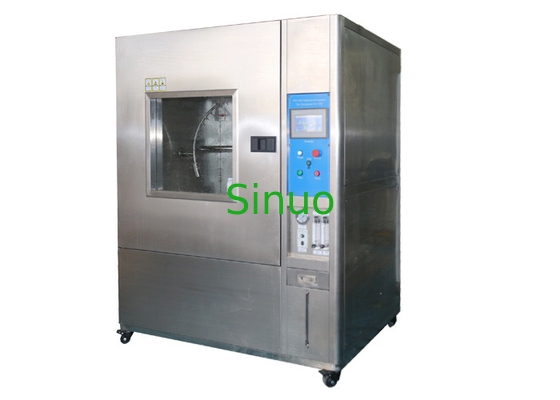

1. It is suitable for IPX3 and IPX4 waterproof level test.



IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber 1



2, The shell is made of high-quality steel plates, beautiful and durable.



3. The inner chamber, oscillating tubes, turntable and other wading parts are all made of SUS304 stainless steel to ensure no rust for long time use.

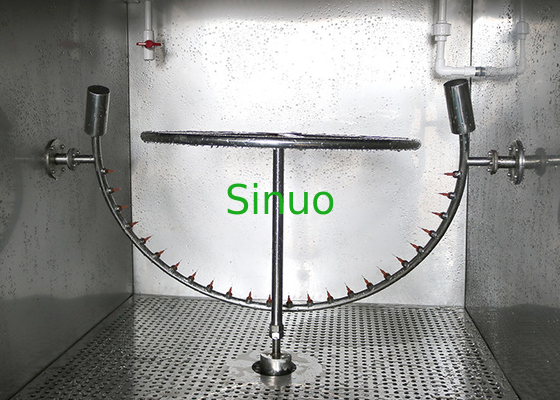

4. The oscillating tubes adopts flange joints, which is convenient for installing and changing the oscillating tubes; the nozzle contact position on the oscillating tubes adopts brass cone design, which is convenient for installing the spray nozzle.



5. The water supply pipeline is equipped with a filter, which can filter impurities in the water, so as to prevent nozzle clogging.



6. The turntable uses a stepping motor, the speed can be set on the touch screen, can rotate clockwise or counterclockwise.



7. A power outlet is built-in this chamber, the power on/off time for specimen can be controlled by the program: power off (0-999min), power on (0-999min), power off (0-999min).



8. A waterproof LED lighting is installed in the test chamber, and there is a large observation window on the door to facilitate the observation of the test inside the chamber.



9. The equipment comes with a water tank for recycling water, user does not need to build a professional waterproof test room. There is a float valve in the water tank, which automatically controls the water inlet and has the function of high and low water level alarm monitoring, to effectively prevent the pump from being damaged due to dry water shortage.



IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber 2



10. The core control components adopt the 7-inch touch screen + Mitsubishi or Panasonic PLC; the electrical components adopt imported branded ones such as LG and Omron; the wiring process conforms to the international standard requirements, the layout of the electric board is reasonable, the wiring is firm, and the marking is clear.



IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber 3



11. Self-developed IPX waterproof level test operation interfaces, operator directly select the relative waterproof level on the touch screen to process corresponding IP Code testing as per standard requirements automatically, the operation is simple and humanized.



12. "Remote operation" function is optional: the user can set parameters, start, stop, clear data and other actions on the phone and computer. (requires additional corresponding software).



13. The base of the equipment is equipped with 4 movable brake casters for easy movement and fixing.



Technical Parameters:



Chamber
Inner Chamber

1000mm*1000mm*1000mm

(Can be customized according to customer's specimen)

Outer Chamber

1500mm*1400mm*1900mm

(Can be customized according to customer's specimen)

Turntable
Rotating Speed 1 ~5 rpm adjustable
Turntable Diameter 200mm or 400mm (optional)
Turntable Height 200mm, it is adjustable
IPX3/4
Oscillation Tube R200 mm or R400 mm (optional)
Oscillating Angle Range of Oscillating Tube ±60° (IPX3), approximately ±180°(IPX4)
Needle Hole φ0 .4 mm
Oscillating Speed IPX3: 15times/min; IPX4: 5times/min
Distance Between Holes 50 mm
Water Flow of Each Hole 0.07 L/min +5%
Spray Pressure 80-150Kpa





Nozzle Holes

121 holes of Ф0.5mm

1 hole at the centre

1 inner circles of 12 holes at 30° pitch

4 outer circles of 24 holes at 15° pitch


IEC 60529 IPX3 IPX4 Oscillating Tube Spraying Water Against IP Code Testing Chamber 4
