Touch Pulsator Washing Machine Lid Interlock Endurance Test Equipment

Touch Pulsator Washing Machine Lid Interlock Endurance Test Equipment
Touch Pulsator Washing Machine Lid Interlock Endurance Test Equipment

Large Image :  Touch Pulsator Washing Machine Lid Interlock Endurance Test Equipment

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1401-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 1 Month
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Detailed Product Description
Applied Standard: IEC 60335-2-7, IEC 60335-2-11 Applied UUT: Touch Version Pulsator Washing Machine
Control Method: PLC Control Display Mode: 7" Touch Screen
Test Stations: Can Be Customized Drive Mode: Servo Motor
Clamping Method: Vacuum Suction Cup Door Open Speed: 1.5m/s
Test Force: 0-200N Adjustable Load Voltage: 0-250V
High Light:

Lid Interlock Endurance Test Equipment

,

1.5m/s Endurance Test Equipment



IEC60335-2-7 Touch Pulsator Washing Machine Lid Interlock Durability Test Machine



System overview:



The washing machine is specially degined for touch version pulsator washing machine, which complies with IEC 60335-2-11:2008 clause 20.101, IEC 60335-2-7:2016 clause 18 and 22.104, IEC 60335-2-4:2006 clause 18. It is used to test the durability of the interlocking device of pulsator washing machine lid, and the force test when the interlock is actuated, so as to verify the reliability of the interlocking device; also used to assist other tests for repeated opening and closing operations of the pulsator washing machine lid.

This test equipment is equipped with a capacitive touch pen, which can touch the pulsator washing machine's touch screen smoothly and sensitively.



Test Principle:



The on/off actions of the interlocking device are controlled through developed program, the manipulators are driven by servo motor to reciprocating open and close the lid at a certain speed with vacuum suction cup sucking on the door or fixture clamping the lid, thus, to verify the reliability of the interlocking device. A force sensor is mounted on the manipulators to form a closed loop control with the servo motors, to accurately control the lid opening/closing force values.



Technical Characteristics:



Test Stations One
Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor drive
Clamping Method for Specimen Vacuum suction cup, pneumatic
Lid Opening or Closing Speed 0-360°/s(1.5m/s), can be preset
Lid Opening or Closing Angle 0-130°, can be preset
Test Times 0-999999times, can be preset
Door/Lid Opening or Closing Force 0-200N, can be preset (the opening force value is only for the pull test when the interlock device is actuated to lock the door)
Load Voltage 0-250V, adjustable
Auxiliary Action Mechanism Capacitive touch pen
Test Contents

Pulsator washing machine lid interlocking device endurance test

(IEC 60335-2-11 clause 20.101,IEC 60335-2-7 clause 18.101)

Pulsator washing machine lid opening testing within the dehydration cycle (IEC 60335-2-7 clause 18.102, IEC60335-2-4 clause18)

Pull test when the interlock device is actuated to lock the door

(IEC 60335-2-7 clause 22.104)



Except for testing washing machine's lid, the test system can also be expanded to test the washing machine's detergent box and locker, with special auxiliary action mechanisms. Shown as following, Simulating to pull out the locker with the special auxiliary action mechanism:

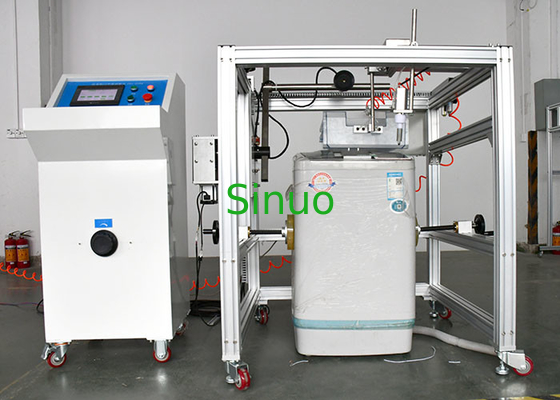

Touch Pulsator Washing Machine Lid Interlock Endurance Test Equipment 0



The force curve of the lid opening can be drawed and displayed in real-time, If operator wants to view the past curve, click the historical curve button to enter the historical curve screen to view it. If operator doesn't want to save the curve, operator can click the clear curve button to clear the curve on the real-time curve screen.
