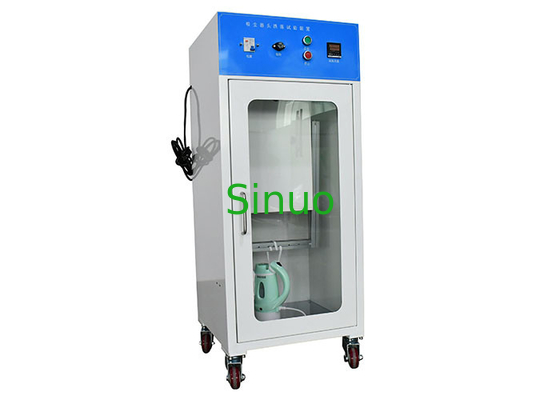

Motorized Cleaning Heads 100mm Free Fall Test Apparatus IEC60335-2-2

Motorized Cleaning Heads 100mm Free Fall Test Apparatus IEC60335-2-2
Motorized Cleaning Heads 100mm Free Fall Test Apparatus IEC60335-2-2

Large Image :  Motorized Cleaning Heads 100mm Free Fall Test Apparatus IEC60335-2-2

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1701
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Applied Standard: IEC 60335-2-2 Applied Clause: Clause 15.101
Test Station: Single Clamping Method: By Rope
Test Speed: ≤20 Drop/min Drop Height: 100 Mm
Support Plate Thickness: >15mm Support Plate Mass: > 15kg
High Light:

Clause 15.101 Free Fall Test Apparatus

,

IEC60335-2-2 Free Fall Test Apparatus



IEC60335-2-2 Motorized Cleaning Heads of Water-suction Cleaning Appliances Free Fall Test Apparatus



Equipment introduction:


This feel frall test apparatus for motorized cleaning heads of water-suction cleaning appliances is designed and manufactured according to IEC 60335-2-2: 2019 clause 15.101. It is used to verify that the motorized cleaing heads of water-suction cleaning appliances shall be resistant to liquids that may come into contact with them.



The test times can be preset, and the test equipment will automatically stop when the test times reaches to the setting value. It is easy to operate, with generous appearance.


Test requirements (extracted from IEC 60335-2-2: 2019 clause 15.101):

The motorized cleaning head is subjected to the test Free fall - procedure 1 of IEC 60068-2-31. It is dropped 4000 times from a height of 100 mm onto a steel plate having a thickness of not less than 15 mm. it is dropped

-1000 times on its right side,
-1000 times on its left side,

-1000 times on its front face,

-1000 times on its cleaning surface.


 Technical Parameters:


Test Station Single
Electrical Control Method Button control
Drive Mode The motor drives the cam mechanism to achieve a free drop action
Sample Clamping Method Mounted to the drop mechanism by rope
Test Speed ≤20 drop/min
Test Times 0~9999 times, can be preset
Drop Height 100 mm, with height positioning block
Support Steel Plate Thickness >15mm, mass > 15kg
Load Power Equipped with a universal socket, rated power input can be supplied to specimen
Main Specimen Motorized cleaning heads for water-suction cleaning appliances
Standards Compliant IEC60335-2-2:2019 clause 15.101

How to install the specimen:


Make the drop moving fixture position up to the highest point by pressing the “START” button, the adjustment method: Preset “0” times, then press the “START” button, the fixture will rise to the highest point. Connect the lower end of the sling with the test sample which is parallel to the base plate, position the height with 100mm height cylinder block under the sample, taut the sling to make it is in a state of tension, clamp the sling device tightly after that, then take away the 100mm height cylinder block.
