IEC 61009-1 Circuit-Breakers 500mm Mechanical Impact Test Machine

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood
Delivery Period:	30 Days
Payment Method:	L/C, , T/T, Western Union, MoneyGram
Supply Capacity:	10 set per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN2507

Applied Standard:

IEC 61009-1

Impact Mass:

150±1g(200g)

Mounting Bracket Mass:

10±1Kg

Mounting Bracket Size:

175*175*8 Mm

Sample Range:

Panel/rail/recessed/panel Mount Type

Impact Head:

R10 Polyamide, Hardness HR100

Highlight:

IEC 61000-4-6 BCI Test System

EMC BCI Test System

400MHz EMC Test Equipment

Product Description

IEC 61009-1 Circuit-Breakers 500mm Mechanical Impact Test Machine

System configuration:

The test equipment conforms to the standard requirements of IEC 61009-1:2012, IEC60898-1:2015 clause 9.13, etc.

It is used for switch sockets, surface-mounted installation boxes, contactors, molded case AC air circuit breakers, etc., to verify the impact resistance of exposed parts that may be subjected to mechanical impact during normal use.

Test principle: According to the test Eha: the pendulum, the impact element is released freely at a certain height through a 1-meter pendulum, hits the sample at the lowest point in the vertical direction, and through the transformation of gravitational potential energy into kinetic energy, the purpose of impact testing on the sample is achieved.

Features: This equipment, also known as low-energy pendulum impact test device, adopts a floor-standing structure and does not need to be installed. The sample mounting bracket can be adjusted up and down, left, right, and front and rear. At the same time, it can be adjusted around the axis perpendicular to the mounting plate and the mounting plate can rotate around the vertical axis, a total of wuzhou2 adjustable. The swing rod can adjust the release angle through the pivot, so as to achieve the impact on different positions of the front and side of the sample, covering the impact test requirements of most similar products.

Technical parameters:

Model	SN2507
Applicable Sample Range	Panel mount, rail mount, recessed, panel mount circuit breaker
Impact element head	R10 polyamide, hardness HR100
Impact element mass (equivalent mass)	150±1g(200g)
Mounting Bracket quality	10±1Kg
Mounting brackets	Can rotate ±90° around the mounting plate, the mounting plate can rotate ±90° around the vertical axis, X, Y, Z three axes can be adjusted
Position regulation	Bracket X-100～100mm, Y-100～100mm, Z-100～100mm stroke adjustable
Swing pendulum	A steel pendulum with a length of 1000±1mm, a mass of 100±1g, a material outer diameter of 9 mm, and a wall thickness of 0.5 mm
Impact height	0-500mm, scale display (corresponding angle conversion)
Circuit breaker mounting plate	1751758 laminated board
Specimen fixture	Non-enclosed circuit breaker mounting fixture Panel mount circuit breaker mounting clamps
Dimension	860mm×650mm×2000mm
Weight	About 140 KG

Height of Fall:

Energy /J	0.14	0.2		(0.3)	0.35	(0.4)	0.5		0.7	1	2	5	10	20	50
Equivalent Mass /kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0.25	0.5	1.7	5	5	10
Height of Fall ±1%mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.

Details Display:

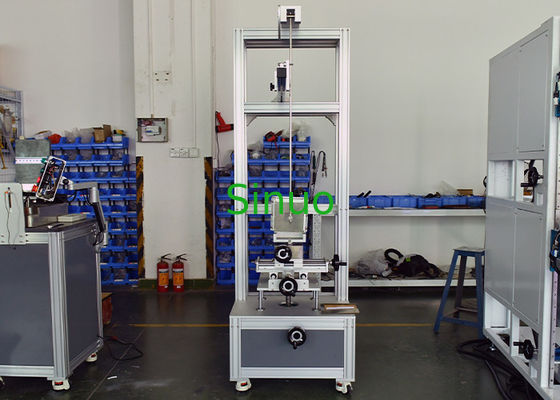

IEC 61009-1 Circuit-Breakers 500mm Mechanical Impact Test Machine 2

IEC 61009-1 Circuit-Breakers 500mm Mechanical Impact Test Machine 3
