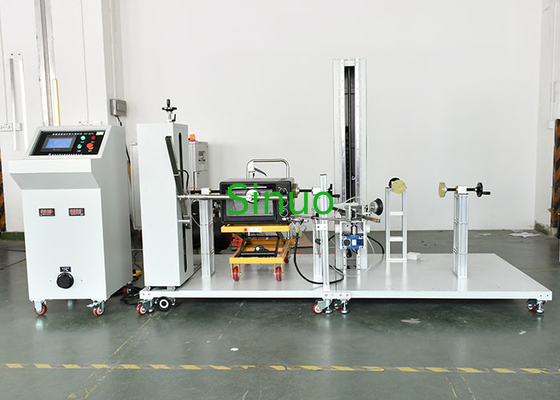

IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control

IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control
IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control

Large Image :  IEC 60335-2-6 Household Ovens Door Endurance Test System PLC Control

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1501B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 1 Month
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 Sets Per Month
Detailed Product Description
Applied Standards: IEC 603352-6, IEC 60335-2-25 Applied Samples: Ovens, Mircrowave Ovens
Test Stations: 2 Stations Control Method: PLC Intelligent Integrated Control
Display Method: 7" Touch Screen Opening / Closing Speed: 0-360°/s
Opening / Closing Angle: 0-135 Test Speed: 0-15 Times/min
High Light:

PLC Ovens Door Endurance Test System

,

IEC 60335-2-6 Door Endurance Test System

,

7" Ovens Door Endurance Test System



IEC 60335-2-6 Household Ovens Door Endurance Test System



Product information:

The household ovens or microwave oven durability test system is designed and manufactured according to the relevant requirements of IEC 60335-2-6 and IEC 60335-2-25. It is used for the durability test of microwave ovens and household ovens' door. It is compatible with left/right opening doors and up/down opening doors. The fully automated test system is suitable for testing and certification agencies, factory laboratories and other testing departments.



This test system adopts mature technology PLC intelligent control, is equipped with a position adjustable actuator, and a vacuum suction cup structure to absorb the surface of the workpiece. At the same time, it is equipped with a color LCD touch screen, the test angle, speed, and door opening and closing time can be preset, so as to truly simulate manual opening and closing the door to achieve intelligent control mode, one machine with multiple functions.



Technical parameters:



No.:

Item

Specifications

  1.
Input power supply Match client’s local power supply requirements
  1.
Electrical control Mitsubishi PLC intelligent control
  1.
Operation interface Weinview 7-inch color man-machine interface touch screen operation
  1.
Drive mode Servo motor
  1.
Test samples Microwave ovens, household ovens
  1.
Stand column The column contains a lifting mechanism, and the height of the mechanical arm can be adjusted 500-1500mm, matching the position of the sample opening and closing door
  1.

Manipulator

2 sets of door opening and closing manipulators (one set for opening left and right doors, one set for opening up and down, arranged on the column guide rail)
  1.
Adsorption structure Vacuum suction cup, continuous and stable adsorption, will not fall off, 2 sets
  1.
Numbers of door openings and closings Set on touch screen, 0-999999 adjustable
  1.
Opening angle 0-135° can be set on touch screen, adjustable
  1.
Door opening/closing pause time Can be set on touch screen, 0-99999.9S adjustable
  1.
Opening/closing rate 0-360°/S,can be set on touch screen, adjustable
  1.
Test speed 0-15 times/min
  1.
Specimen fixture One set
  1.
Test contens

Durability test of microwave oven hinge device(IEC 60335-2-25 clause 18)

Durability test of household oven interlocking device ( clause 22.108 of IEC 60335-2-6)

  1.
Load voltage Equipped with 0-250V voltage regulator for live test of samples
  1.
  • ion
Safety protection such as leakage, short circuit, overload, etc.
  1.
Equipment dimensions

L*W*H=Approx. 2600×1550×1800mm

  1.
Equipment weight

520 kgs
