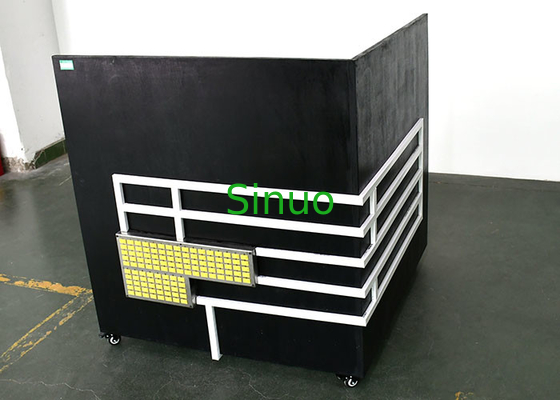

Electrical Appliance Testing Equipment 120 Measure Points Test Corner

Electrical Appliance Testing Equipment 120 Measure Points Test Corner
Electrical Appliance Testing Equipment 120 Measure Points Test Corner

Large Image :  Electrical Appliance Testing Equipment 120 Measure Points Test Corner

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1102-1M120P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 1 Month
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Detailed Product Description
Applied Standard: IEC 60335-1 Test Content: Temperature Rising
Dimensions: 100cm*100cm*100cm Material: Matt Black Painted Plywood
Thickness: 20mm Thermocouple: OMEGA, Type K
Total Measuring Points: 120 Points Each Side Measuring Points: 40 Points
High Light:

IEC 60335-1 Electrical Appliance Testing Equipment

,

100×100mm Electrical Appliance Testing Equipment



IEC60335-1 1M 120 Temperature Measuring Points Test Corner



Equipment Overview:



IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 11.

The test corners are mainly used to provide environmental conditions that meet the standard requirements for temperature rise testing of various electrical and electrical products.

The test corners with different distribution specifications, numbers of temperature measuring points and external dimensions can be customized according to the actual tested samples.



Test Principle:



Thermocouples used for determining the temperature rise of the surface of walls, ceiling and floor of the test corner are attached t the back of small blackened disks of copper or brass, 15mm in diameter and 1mm thick. The front of the disk is flush with the surface of the board. The thermocouples are connected to the temperature measurement instrument to monitor the temperature at each point in real time.



Technical Parameters:



Equipment structure Three-panel structure, 1 base plate, 2 side plates
Dimensions

WDH=1000X1000X1000mm

Other dimensions can be customized

Thermocouple American original OMEGA thermocouple,  diameter <0.3mm, PTFE Teflon PFA, insulation layer temperature resistance -200℃ to 260℃, core diameter: 2X0.255mm
Thermocouple Arrangement All lead to the terminal block
Temperature Measurement Copper 15mm diameter, 1mm thick brass sheet painted in black, the front surface of the round copper sheet is flush with the surface of the plywood
Temperature Measurement Points 40 points per each surface, total 120 temperature measuring points
Temperature Measurement Point Arrangement 100×100mm square distribution, can be customized 76×76mm or 50×50mm
Plywood 20mm thickness, matte black paint on the front and gray film on the back
Equipment features The temperature test corner can be moved, the bottom is equipped with 2 or 3 inch flat-bottomed brake wear-resistant corner wheels, the total height is about 100mm, and the load is ≥200kg
Optional Temperature measuring and recording instrument


Sinuo can customize different sizes with different temperature measuring distribution according to client's specific requirements. And our test corners are well painted, the themocouples and measuring coppers are well arrayed, all the themocouples are leaded to the terminal block, which is covenient for client to connect to the temperature measuring and recording instruments.
